- دیتاشیت LTpowerCAD II User Guide
LTpowerCAD II User Guide دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LTpowerCAD II User Guide |
|---|---|
| حجم فایل | 5376.71 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 60 |
دانلود دیتاشیت LTpowerCAD II User Guide |
دانلود دیتاشیت |
|---|
سایر مستندات

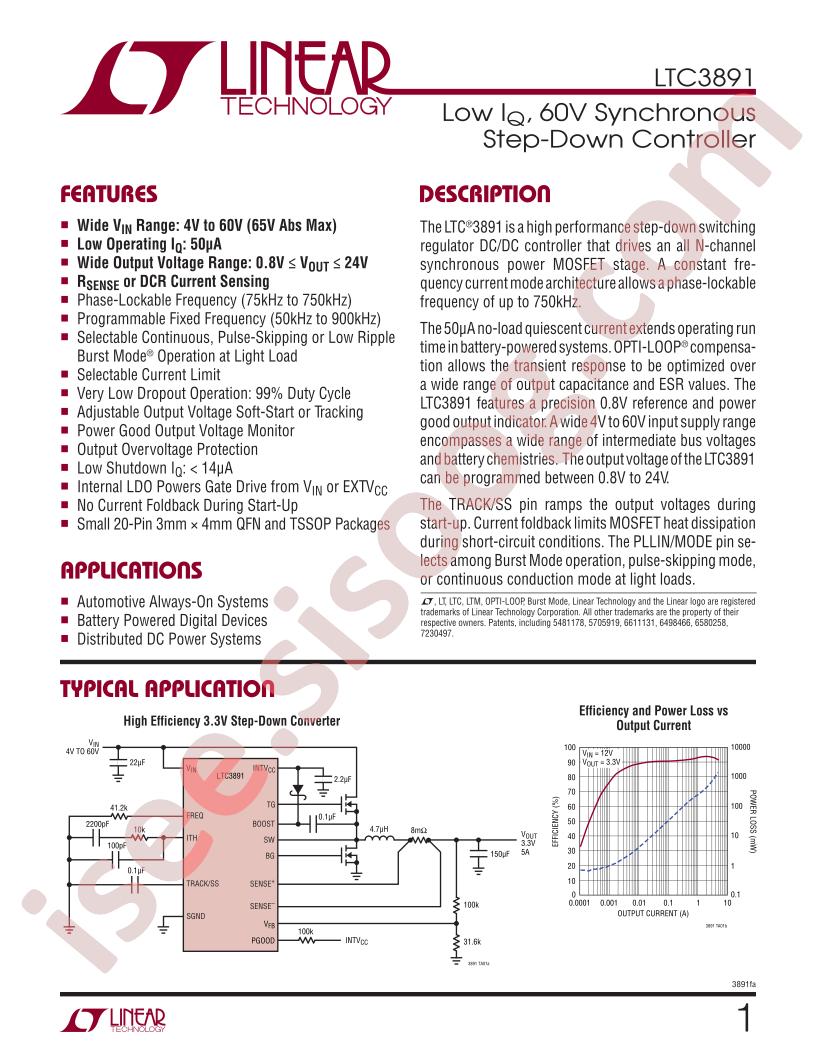

LTC3891 Datasheet 32 pages
LTC3891IFE#PBF 32 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices LTC3891HFE#TRPBF
- Input Voltage: 4V~60V
- Duty Cycle (Max): 99%
- Number of Outputs: 1
- Switching Frequency: 835kHz;535kHz
- Operating Temperature: -40°C~+150°C@(TJ)
- Synchronous Rectification: Yes
- Package: TSSOP-20-EP
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Type: Transistor Driver
- Output Configuration: Positive
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 4V ~ 60V
- Frequency - Switching: 105kHz ~ 835kHz, 350kHz ~ 535kHz
- Synchronous Rectifier: Yes
- Clock Sync: No
- Serial Interfaces: -
- Control Features: Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking
- Mounting Type: Surface Mount
- Package / Case: 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package: 20-TSSOP-EP
- Base Part Number: LTC3891
- detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 20-TSSOP-EP
