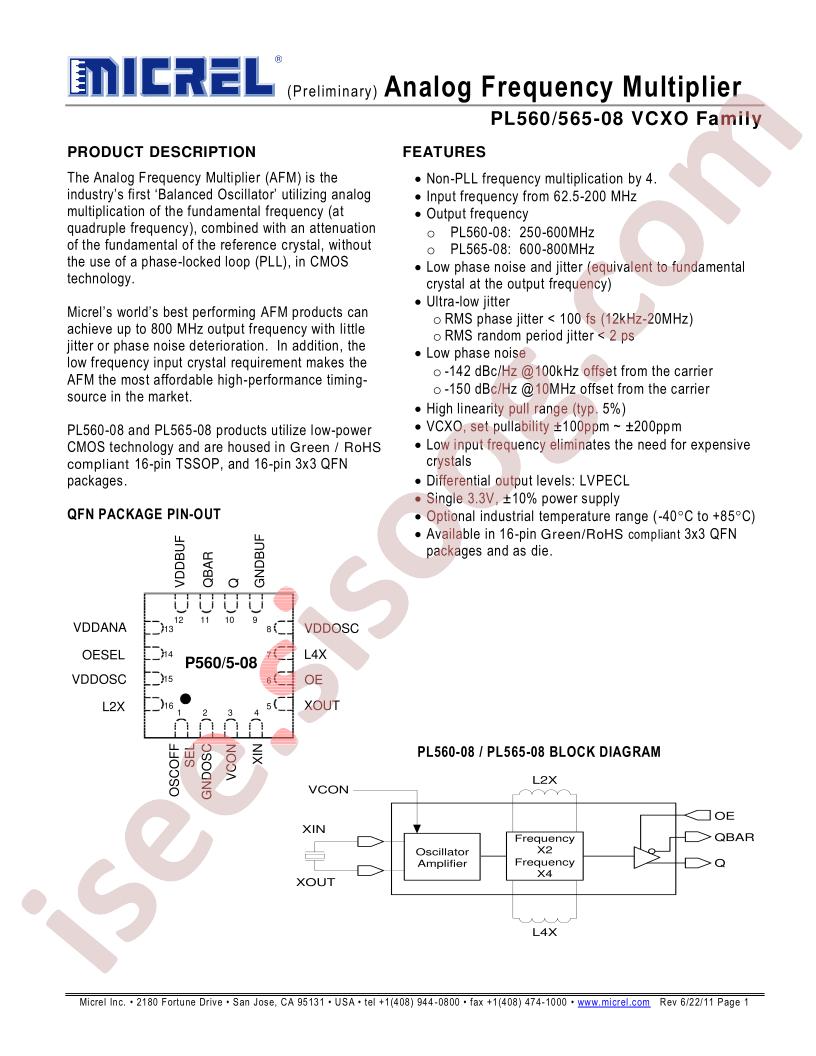

PL565-08QC-R Datasheet
Datasheet specifications
| Datasheet's name | PL560,565-08 Family |
|---|---|
| File size | 559.591 KB |
| File type | |
| Number of pages | 12 |
Download Datasheet PL560,565-08 Family |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: Microchip Technology
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Discontinued at Digi-Key
- PLL: No
- Input: Crystal
- Output: LVPECL
- Number of Circuits: 1
- Ratio - Input:Output: 1:1
- Differential - Input:Output: No/Yes
- Frequency - Max: 800MHz
- Divider/Multiplier: No/Yes
- Voltage - Supply: 2.97V ~ 3.63V
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Surface Mount
- Package / Case: 16-WFQFN Exposed Pad
- Supplier Device Package: 16-QFN (3x3)
- Base Part Number: PL565
- detail: IC VCXO 800MHZ 16QFN
