دیتاشیت LTC1596-1CIN#PBF

LTC1595/96/96-1

مشخصات دیتاشیت

نام دیتاشیت LTC1595/96/96-1
حجم فایل 332.231 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت LTC1595/96/96-1

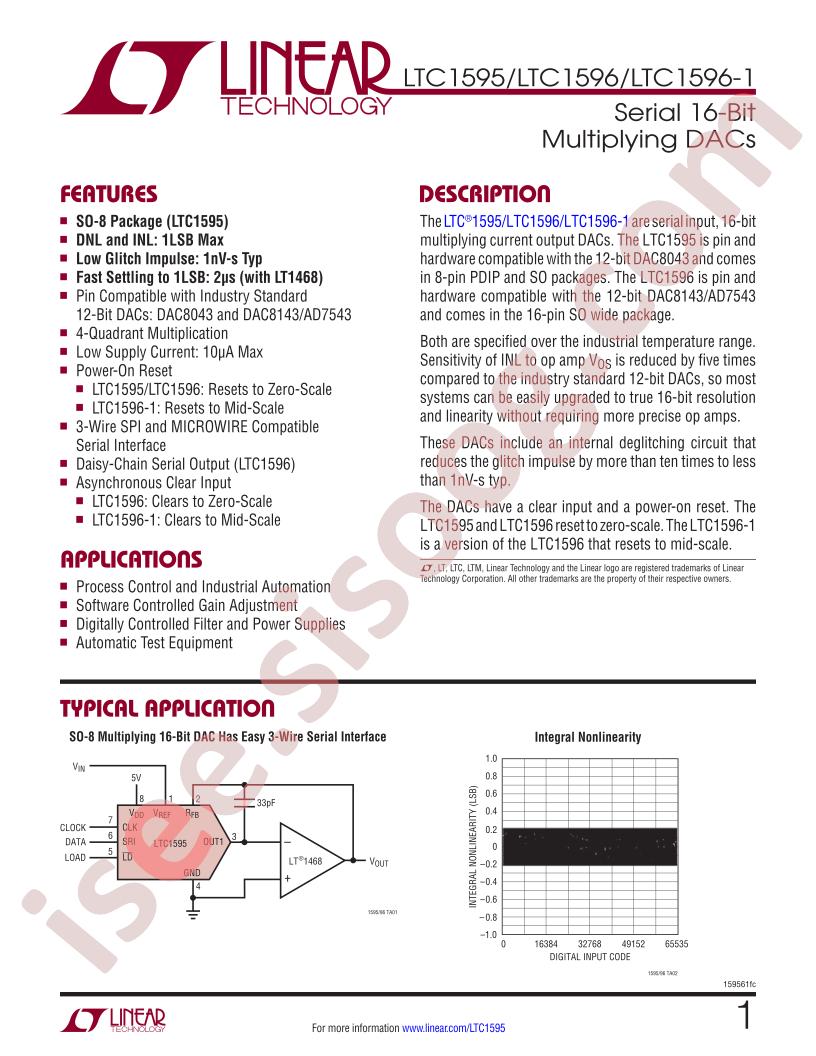

LTC1595/96/96-1 Datasheet

مشخصات

  • Manufacturer: Linear Technology/Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Number of Bits: 16
  • Number of D/A Converters: 1
  • Settling Time: 1µs (Typ)
  • Output Type: Current - Unbuffered
  • Differential Output: Yes
  • Data Interface: SPI
  • Reference Type: External
  • Voltage - Supply, Analog: 5V
  • Voltage - Supply, Digital: 5V
  • INL/DNL (LSB): ±4 (Max), ±2 (Max)
  • Architecture: R-2R
  • Operating Temperature: -40°C ~ 85°C
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Supplier Device Package: 16-PDIP
  • Mounting Type: Through Hole
  • Base Part Number: LTC1596
  • detail: 16 Bit Digital to Analog Converter 1 16-PDIP
