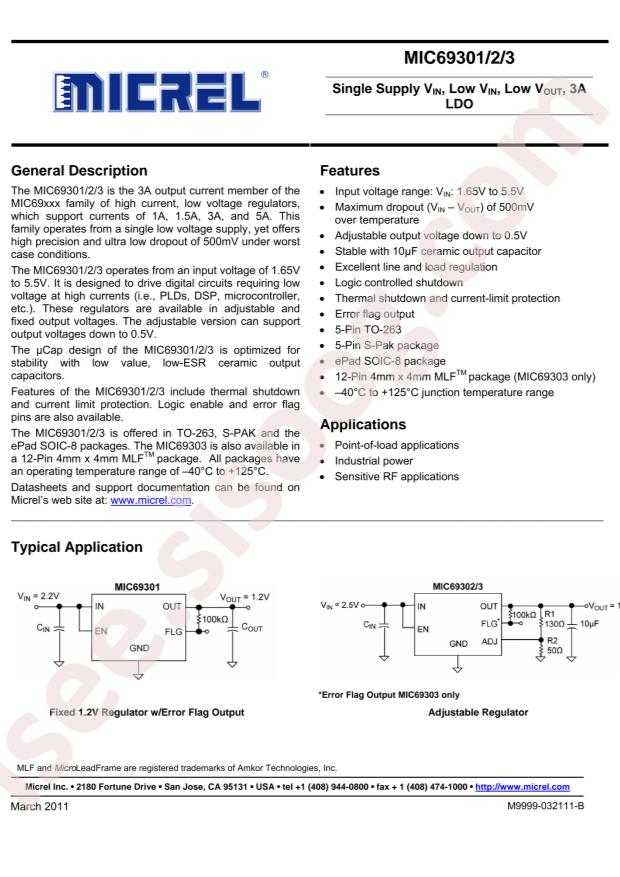

دیتاشیت MIC69301-1.2WU

MIC69301,02,03

مشخصات دیتاشیت

نام دیتاشیت MIC69301,02,03
حجم فایل 442.938 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

دانلود دیتاشیت MIC69301,02,03

MIC69301,02,03 Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 5.5V
  • Voltage - Output (Min/Fixed): 1.2V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.5V @ 3A
  • Current - Output: 3A
  • Current - Quiescent (Iq): 5mA
  • Current - Supply (Max): 75mA
  • PSRR: -
  • Control Features: Enable, Error Flag
  • Protection Features: Over Current, Over Temperature
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
  • Supplier Device Package: TO-263-5
  • Base Part Number: MIC69301-1.2
  • detail: Linear Voltage Regulator IC 1 Output 3A TO-263-5
