دیتاشیت ATSAMB11G18A-MU-T
مشخصات دیتاشیت
| نام دیتاشیت | SAMB11 Datasheet |
|---|---|
| حجم فایل | 1534.926 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 61 |

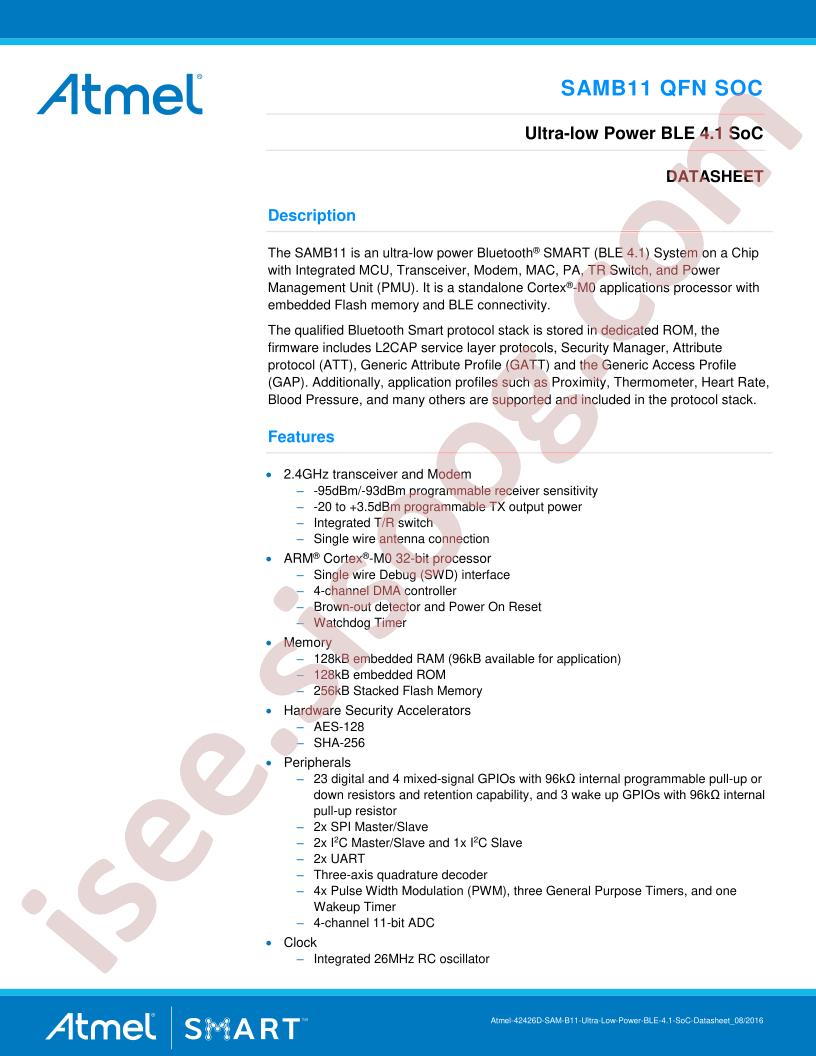

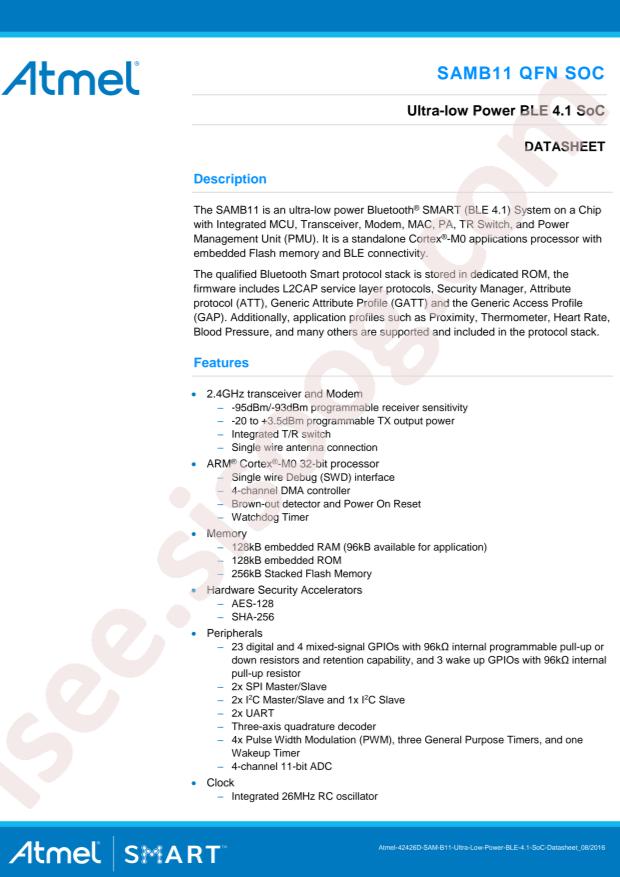

دانلود دیتاشیت SAMB11 Datasheet |
SAMB11 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
- Datasheet: Microchip Tech ATSAMB11G18A-MU-T
- Interface: I2C,SPI,UART
- Applications: Bluetooth
- Frequency Range: 2.4GHz
- Receive Current: 4.2mA
- Operating Voltage: 2.3V~4.3V
- Operating Temperature: -40°C~+85°C
- Current Of Transmitting: 3mA
- Package: QFN-48-EP(6x6)
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: TxRx + MCU
- RF Family/Standard: Bluetooth
- Protocol: Bluetooth v4.1
- Modulation: -
- Frequency: 2.4GHz
- Data Rate (Max): -
- Power - Output: 3.5dBm
- Sensitivity: -96dBm
- Memory Size: 256kB Flash, 128kB ROM, 128kB RAM
- Serial Interfaces: I²C, SPI, UART
- GPIO: 30
- Voltage - Supply: 2.3V ~ 4.3V
- Current - Receiving: 4.2mA
- Current - Transmitting: 3mA
- Mounting Type: Surface Mount
- Package / Case: 48-VFQFN Exposed Pad
- Supplier Device Package: 48-QFN (6x6)
- Base Part Number: ATSAMB11
- detail: IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 48-VFQFN Exposed Pad
