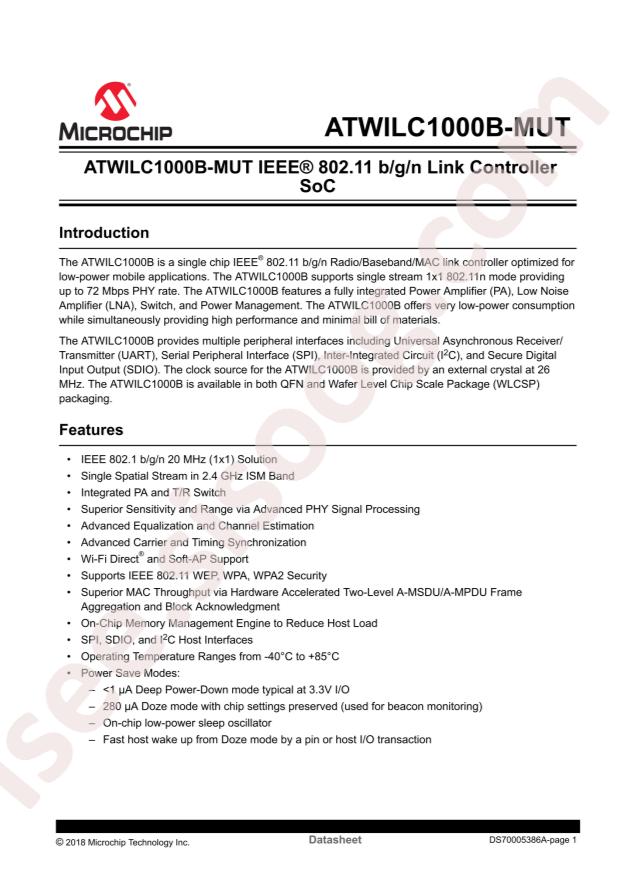

دیتاشیت ATWILC1000B-UU-T
مشخصات دیتاشیت
| نام دیتاشیت |
ATWILC1000B-UU-T
|
| حجم فایل |
84.555
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
50
|
مشخصات فنی
-
RoHS:
true
-
Category:
Radio Frequency Chip/Antenna/RF Transceiver ICs
-
Datasheet:
Microchip Tech ATWILC1000B-UU-T
-
Package:
WLCSP-55
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
TxRx + MCU
-
RF Family/Standard:
WiFi
-
Protocol:
802.11b/g/n
-
Modulation:
CCK, DSSS, OFDM
-
Frequency:
2.4GHz
-
Data Rate (Max):
72.2Mbps
-
Power - Output:
20.5dBm
-
Sensitivity:
-98dBm
-
Memory Size:
128kB ROM, 224kB RAM
-
Serial Interfaces:
I²C, SDIO, SPI, UART
-
GPIO:
9
-
Voltage - Supply:
1.62V ~ 3.6V
-
Current - Receiving:
52.5mA ~ 58.5mA
-
Current - Transmitting:
244mA ~ 294mA
-
Operating Temperature:
-40°C ~ 85°C
-
Mounting Type:
Surface Mount
-
Package / Case:
55-UFBGA, WLCSP
-
Supplier Device Package:
55-WLCSP (3.25x3.25)
-
Base Part Number:
ATWILC1000
-
detail:
IC RF TxRx + MCU WiFi 802.11b/g/n 2.4GHz 55-UFBGA, WLCSP
