دیتاشیت ATTINY40-XUR
مشخصات دیتاشیت
| نام دیتاشیت | ATTINY40 Summary |
|---|---|
| حجم فایل | 471.815 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 12 |
دانلود دیتاشیت ATTINY40 Summary |

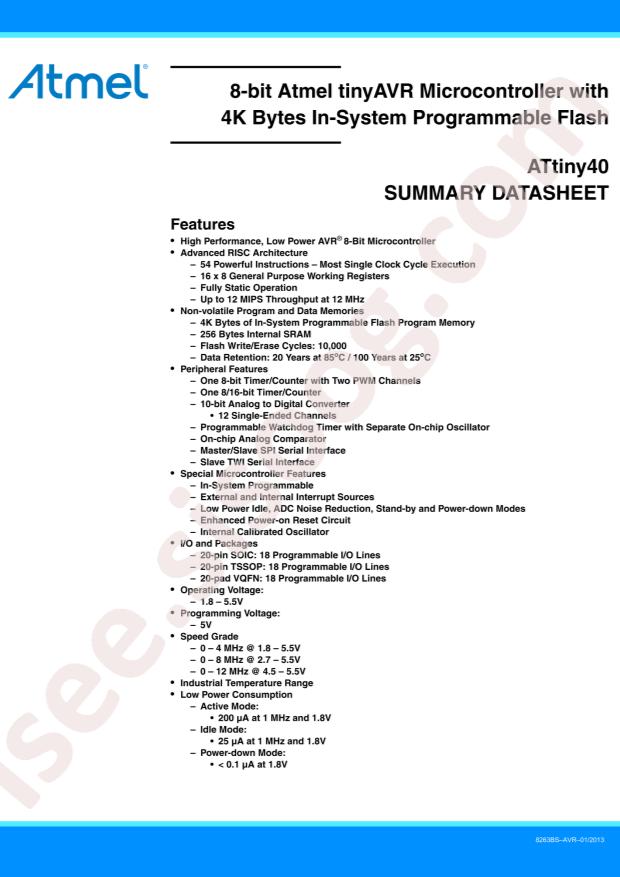

ATTINY40 Summary Datasheet |
|---|
مشخصات
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: AVR
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 256Byte
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: Microchip Tech ATTINY40-XUR
- PWM (Bit): -
- 8Bit Timer: -
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 12MHz
- GPIO Ports Number: 18
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: WDT
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 4KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.8V~5.5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: TSSOP-20
- Manufacturer: Microchip Tech
- Series: AVR® ATtiny
- Packaging: Cut Tape (CT)
- Part Status: Discontinued at Digi-Key
- Core Processor: AVR
- Core Size: 8-Bit
- Speed: 12MHz
- Connectivity: I²C, SPI
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O: 18
- Program Memory Size: 4KB (2K x 16)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 1.8V ~ 5.5V
- Data Converters: A/D 12x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 20-TSSOP
- Base Part Number: ATTINY40
- detail: AVR AVR® ATtiny Microcontroller IC 8-Bit 12MHz 4KB (2K x 16) FLASH 20-TSSOP
