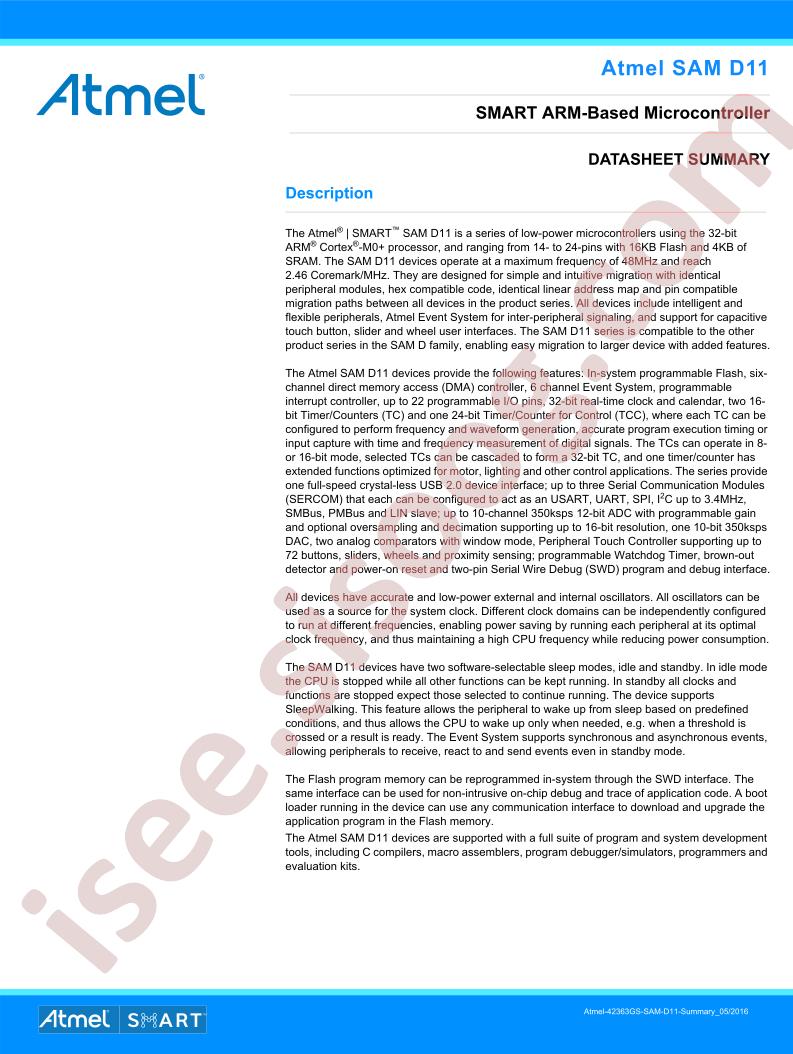

SAM D11 Summary Datasheet
Datasheet specifications
| Datasheet's name | SAM D11 Summary |
|---|---|
| File size | 1018.957 KB |
| File type | |
| Number of pages | 20 |
Download Datasheet SAM D11 Summary |
Download Datasheet |
|---|
Other documentations
Technical specifications
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: ARM Cortex-M0
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 4KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): 10bit
- Datasheet: Microchip Tech ATSAMD11D14A-SSNT
- PWM (Bit): -
- 8Bit Timer: -
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 48MHz
- GPIO Ports Number: 18
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: DMA;WDT;LIN(Local Interconnect Network)
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 16KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.62V~3.63V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+105°C
- Secure Digital Input and Output: -
- Package: SOP-20-300mil
- Manufacturer: Microchip Tech
- Series: SAM D11D
- Packaging: Cut Tape (CT)
- Part Status: Active
- Core Processor: ARM® Cortex®-M0+
- Core Size: 32-Bit
- Speed: 48MHz
- Connectivity: I²C, LINbus, SPI, UART/USART, USB
- Peripherals: Brown-out Detect/Reset, DMA, POR, WDT
- Number of I/O: 18
- Program Memory Size: 16KB (16K x 8)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 1.62V ~ 3.63V
- Data Converters: A/D 8x12b; D/A 1x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 20-SOIC
- Base Part Number: ATSAMD11
- detail: ARM® Cortex®-M0+ SAM D11D Microcontroller IC 32-Bit 48MHz 16KB (16K x 8) FLASH 20-SOIC
