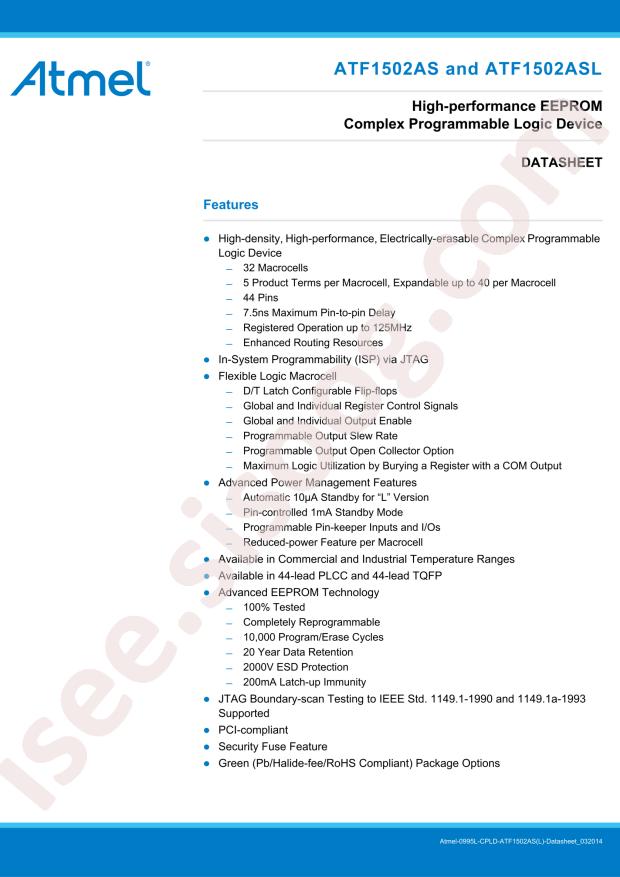

دیتاشیت ATF1502AS-7JX44
مشخصات دیتاشیت
| نام دیتاشیت |
ATF1502AS,ASL
|
| حجم فایل |
979.744
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
29
|
مشخصات
-
RoHS:
true
-
Type:
其它PLD
-
Category:
Single Chip Microcomputer/Microcontroller/Programmable Logic Device (CPLDs/FPGAs)
-
Datasheet:
Microchip Tech ATF1502AS-7JX44
-
Logic Array Blocks:
-
-
Number of Logic Gates:
-
-
Logic Elements / Cells:
-
-
Maximum Delay Time Tpd:
7.5ns
-
Operating Temperature Range:
0°C~+70°C
-
Supply Voltage Range - VCCIO:
4.75V~5.25V
-
Package:
PLCC-44
-
Manufacturer:
Microchip Tech
-
Series:
ATF15xx
-
Packaging:
Tube
-
Part Status:
Active
-
Programmable Type:
In System Programmable (min 10K program/erase cycles)
-
Delay Time tpd(1) Max:
7.5ns
-
Voltage Supply - Internal:
4.75V ~ 5.25V
-
Number of Macrocells:
32
-
Number of I/O:
32
-
Operating Temperature:
0°C ~ 70°C (TA)
-
Mounting Type:
Surface Mount
-
Package / Case:
44-LCC (J-Lead)
-
Supplier Device Package:
44-PLCC (16.6x16.6)
-
Base Part Number:
ATF1502AS
-
detail:
IC CPLD 32MC 7NS 44PLCC
