دیتاشیت ATSAMR21E18A-MUT
مشخصات دیتاشیت
| نام دیتاشیت | SAM R21E,G Datasheet |
|---|---|
| حجم فایل | 17418.614 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 1200 |

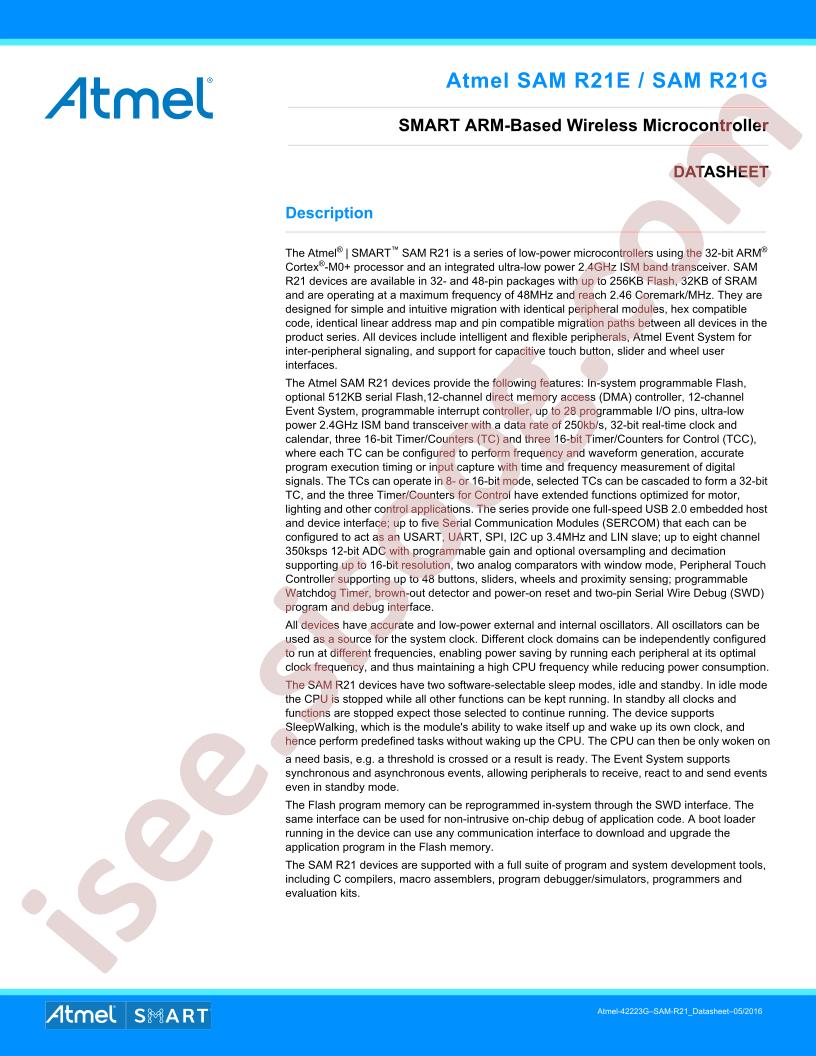

دانلود دیتاشیت SAM R21E,G Datasheet |
SAM R21E,G Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
- Data Rate: 250Kbps
- Datasheet: Microchip Tech ATSAMR21E18A-MUT
- Interface: I2C,SPI,UART,USART,USB
- Applications: General-purpose ISM>1GHz
- Frequency Range: 2.4GHz
- Receive Current: 11.3mA
- Operating Voltage: 1.8V~3.6V
- Operating Temperature: -40°C~+85°C
- Current Of Transmitting: 7.2mA
- Package: QFN-32-EP(5x5)
- Manufacturer: Microchip Tech
- Series: SMART™ SAM R21
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: TxRx + MCU
- RF Family/Standard: General ISM > 1GHZ
- Protocol: -
- Modulation: O-QPSK
- Frequency: 2.4GHz
- Data Rate (Max): 250kbps
- Power - Output: 4dBm
- Sensitivity: -99dBm
- Memory Size: 256kB Flash, 32kB SRAM
- Serial Interfaces: I²C, SPI, UART, USART, USB
- GPIO: 16
- Voltage - Supply: 1.8V ~ 3.6V
- Current - Receiving: 11.3mA ~ 11.8mA
- Current - Transmitting: 7.2mA ~ 13.8mA
- Mounting Type: Surface Mount
- Package / Case: 32-VFQFN Exposed Pad
- Supplier Device Package: 32-QFN (5x5)
- Base Part Number: ATSAMR21E
- detail: IC RF TxRx + MCU General ISM > 1GHZ 2.4GHz 32-VFQFN Exposed Pad
