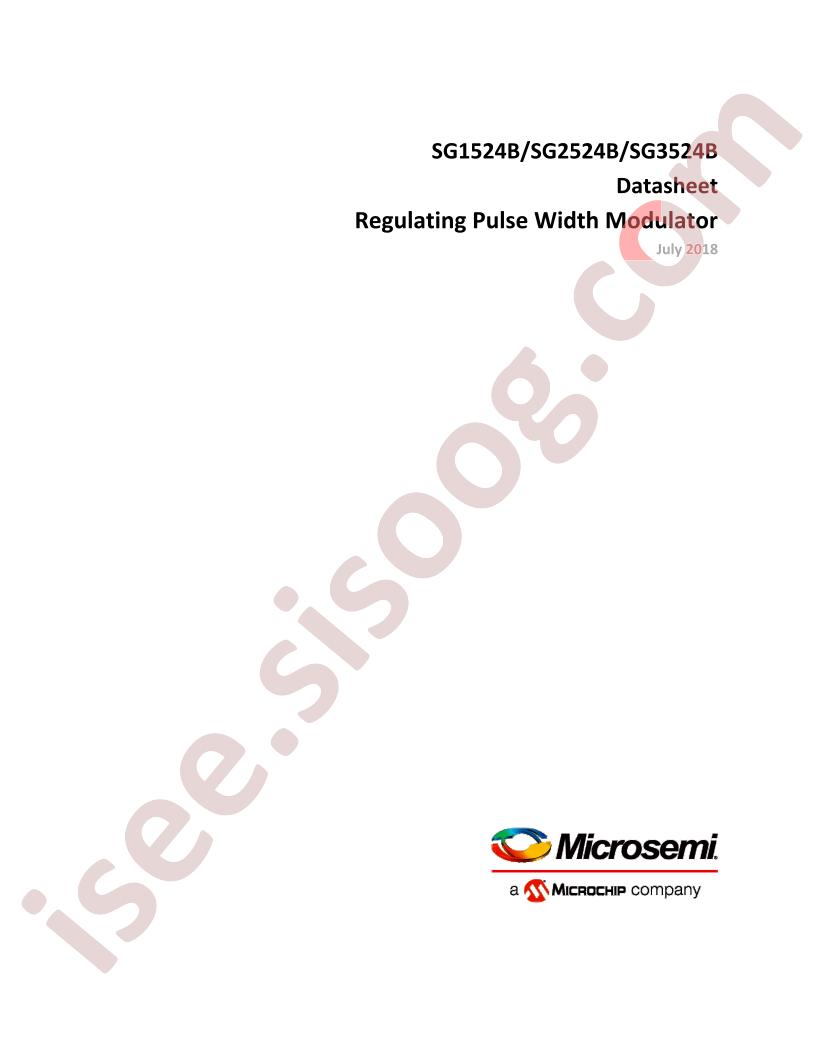

SG1524B, SG2524B, SG3524B دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت SG1524B, SG2524B, SG3524B	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: Microchip Technology
Series: -
Packaging: Tape & Reel (TR)
Part Status: Obsolete
Output Type: Transistor Driver
Function: Step-Up/Step-Down
Output Configuration: Positive
Topology: Flyback
Number of Outputs: 2
Output Phases: 1
Voltage - Supply (Vcc/Vdd): 7V ~ 40V
Frequency - Switching: 50kHz ~ 600kHz
Duty Cycle (Max): 49%
Synchronous Rectifier: Yes
Clock Sync: No
Serial Interfaces: -
Control Features: Enable
Operating Temperature: 0°C ~ 70°C (TA)
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 16-SOIC
detail: Flyback Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 16-SOIC
