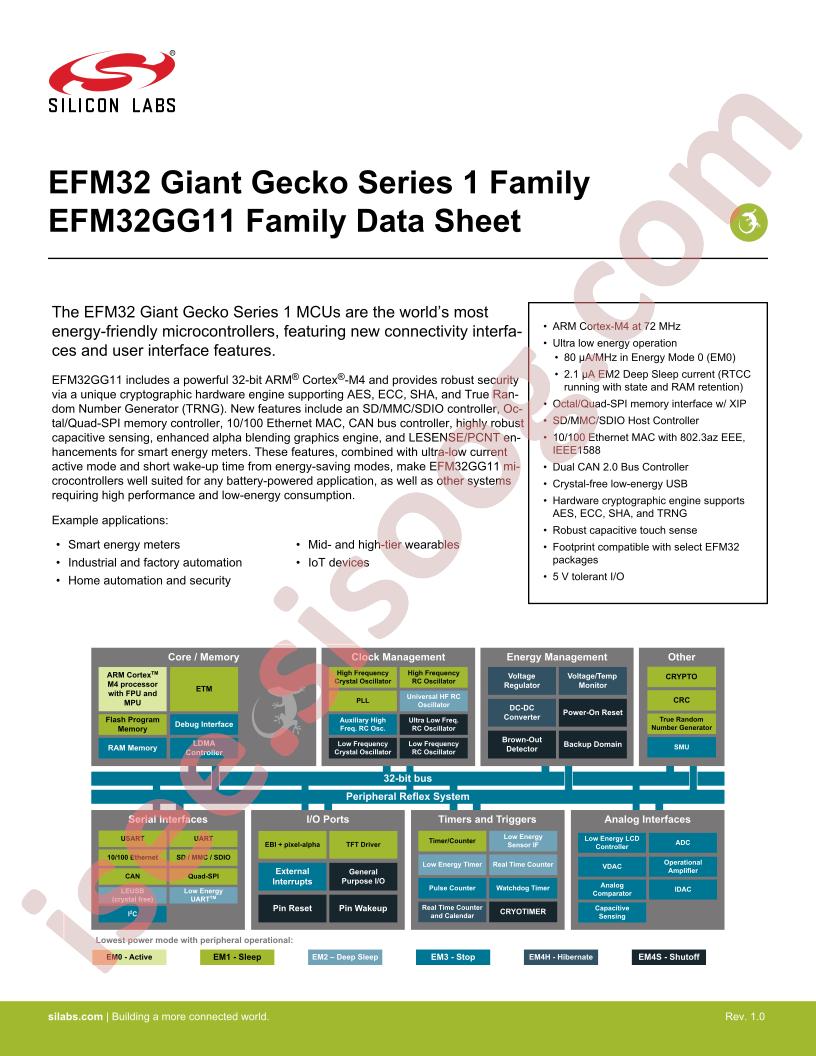

EFM32GG11 Family Preliminary دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | EFM32GG11 Family Preliminary |
|---|---|
| حجم فایل | 4113.664 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 264 |
دانلود دیتاشیت EFM32GG11 Family Preliminary |
دانلود دیتاشیت |
|---|
سایر مستندات
EFM32 Giant Gecko Family Manual 1959 pages
EFM32GG11B120F2048GQ64-B 264 pages
مشخصات فنی
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: ARM Cortex-M4
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 512KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): 12bit
- Datasheet: SILICON LABS EFM32GG11B840F1024GL120-BR
- PWM (Bit): -
- 8Bit Timer: -
- LCD Module: Yes
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 72MHz
- GPIO Ports Number: 95
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: LCD/LED Driver;DMA;WDT;Ethernet protocol stack;LIN(Local Interconnect Network);IrDA
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 1MB
- Universal Serial Bus: Yes
- communication protocol: 以太网协议
- Operating Voltage Range: 1.8V~3.8V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: Yes
- Package: BGA-120
- Manufacturer: SILICON LABS
- Number of I/O: 95
- EEPROM Size: -
- Speed: 72MHz
- Supplier Device Package: 120-BGA (7x7)
- Package / Case: 120-VFBGA
- Core Processor: ARM® Cortex®-M4
- Series: Giant Gecko S1
- Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.8V
- Operating Temperature: -40°C ~ 85°C (TA)
- Oscillator Type: Internal
- Program Memory Size: 1MB (1M x 8)
- Mounting Type: Surface Mount
- Part Status: Active
- Data Converters: A/D 16x12b SAR; D/A 2x12b
- Packaging: Tray
- Connectivity: CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SmartCard, SPI, UART/USART, USB
- Peripherals: Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
- Core Size: 32-Bit
- detail: ARM® Cortex®-M4 Giant Gecko S1 Microcontroller IC 32-Bit 72MHz 1MB (1M x 8) FLASH 120-BGA (7x7)
