دیتاشیت SG1644J-883B

SG1644, SG3644

مشخصات دیتاشیت

نام دیتاشیت SG1644, SG3644
حجم فایل 1630.623 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

دانلود دیتاشیت SG1644, SG3644

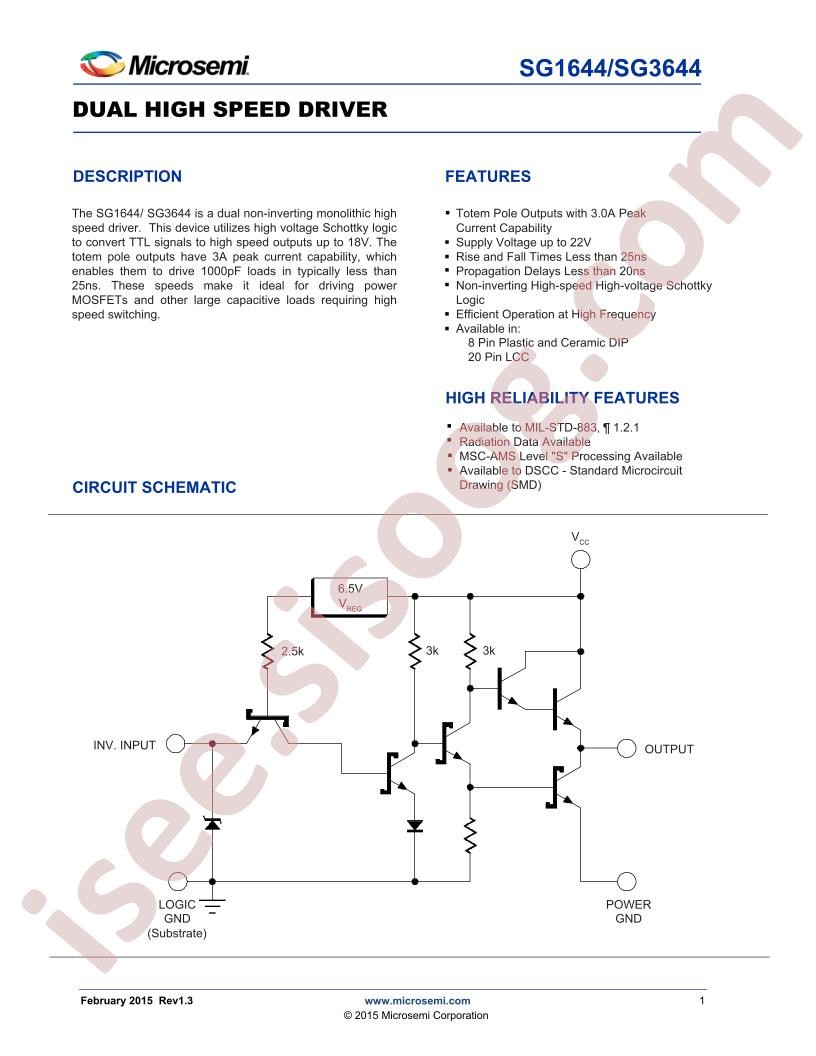

SG1644, SG3644 Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: Military, MIL-STD-883
  • Part Status: Active
  • Driven Configuration: Half-Bridge
  • Channel Type: Independent
  • Number of Drivers: 2
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 4.5V ~ 20V
  • Logic Voltage - VIL, VIH: 0.7V, 2V
  • Current - Peak Output (Source, Sink): 500mA, 500mA
  • Input Type: Non-Inverting
  • Rise / Fall Time (Typ): 35ns, 30ns
  • Operating Temperature: -55°C ~ 125°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: 14-CDIP (0.300", 7.62mm)
  • Supplier Device Package: 14-CERDIP
  • detail: Half-Bridge Gate Driver IC Non-Inverting 14-CERDIP
