FDMC610P دیتاشیت

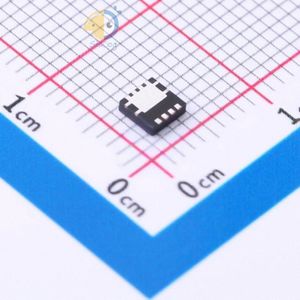

FDMC610P

مشخصات دیتاشیت

نام دیتاشیت FDMC610P
حجم فایل 70.016 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

مشاهده دیتاشیت FDMC610P

دانلود دیتاشیت

سایر مستندات

FDMC610P 9 pages

مشخصات فنی

  • RoHS: true
  • Type: P Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FDMC610P
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 2.4W;48W
  • Total Gate Charge (Qg@Vgs): 99nC@4.5V
  • Drain Source Voltage (Vdss): 12V
  • Input Capacitance (Ciss@Vds): 1250pF@6V
  • Continuous Drain Current (Id): 80A
  • Gate Threshold Voltage (Vgs(th)@Id): 1V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 3.9mΩ@22A,4.5V
  • Package: Power-33-8
  • Manufacturer: onsemi
  • Series: PowerTrench®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: P-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 12V
  • Current - Continuous Drain (Id) @ 25°C: 80A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
  • Rds On (Max) @ Id, Vgs: 3.9mOhm @ 22A, 4.5V
  • Vgs(th) (Max) @ Id: 1V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 99nC @ 4.5V
  • Vgs (Max): ±8V
  • Input Capacitance (Ciss) (Max) @ Vds: 1250pF @ 6V
  • FET Feature: -
  • Power Dissipation (Max): 2.4W (Ta), 48W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: Power33
  • Package / Case: 8-PowerTDFN
  • Base Part Number: FDMC61
  • detail: P-Channel 12V 80A (Tc) 2.4W (Ta), 48W (Tc) Surface Mount Power33
