RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers

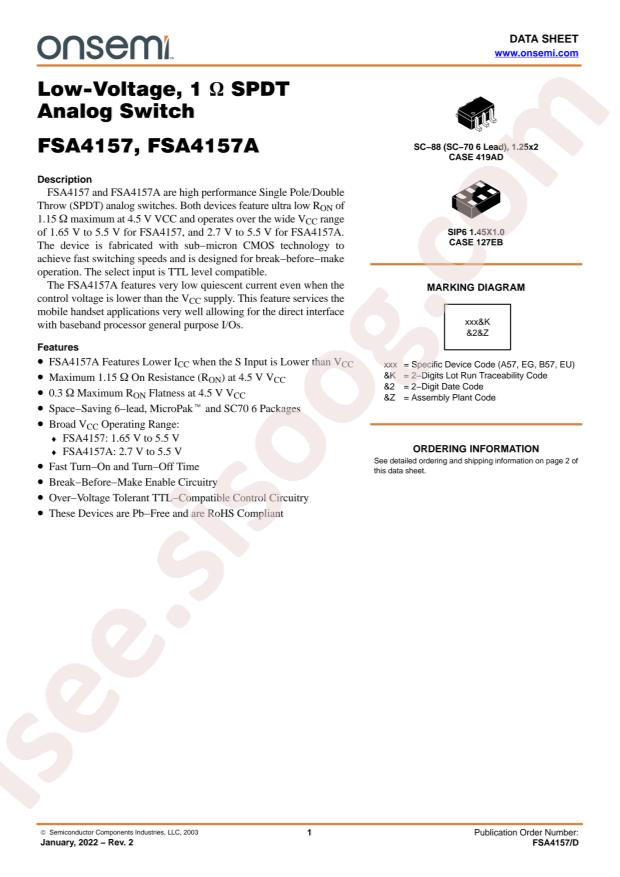

Datasheet: onsemi FSA4157AL6X
Turn-on time: 35ns
Turn-off time: 15ns
Supply Voltage: 2.7V~5.5V
Switch Circuit: SPDT(SPDT)
Number of Channels: 1
On-State Resistance (Max): 1.15Ω

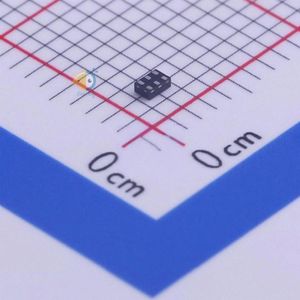

Package: MicroPak-6
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Multiplexer/Demultiplexer Circuit: 2:1
Number of Circuits: 1
Channel-to-Channel Matching (ΔRon): 60mOhm
Voltage - Supply, Single (V+): 2.7V ~ 5.5V
Voltage - Supply, Dual (V±): -
Switch Time (Ton, Toff) (Max): 35ns, 15ns
-3db Bandwidth: 300MHz
Charge Injection: 20pC
Channel Capacitance (CS(off), CD(off)): 12pF
Current - Leakage (IS(off)) (Max): 2nA (Typ)
Crosstalk: -70dB @ 1MHz
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Package / Case: 6-UFDFN
Supplier Device Package: 6-MicroPak
Base Part Number: FSA41
detail: 1 Circuit IC Switch 2:1 1.15Ohm 6-MicroPak
