EMI9408MUTAG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

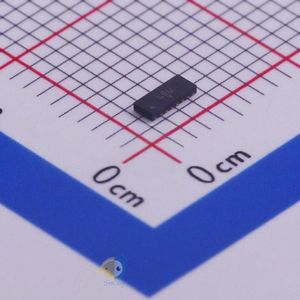

EMI9408MUTAG
|
|
حجم فایل
|
93.578
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Category:
Bead/Filter/EMI Optimization/EMI Filters (LC, RC Networks)
-

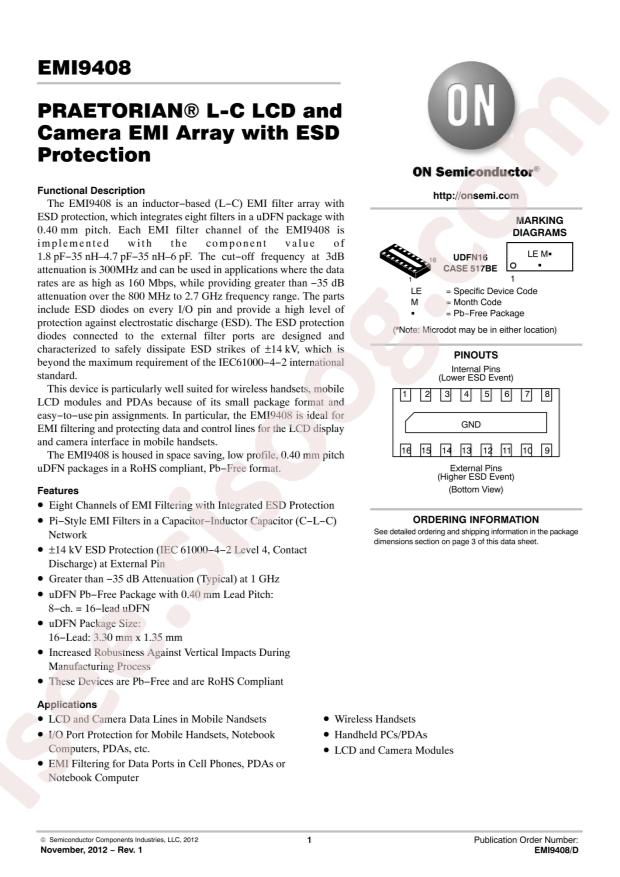

Datasheet:
onsemi EMI9408MUTAG
-
Capacitance:
11.5pF
-
Filter Order:
5
-
ESD Protection:
Yes
-
Attenuation Value:
35dB@800MHz~2.7GHz
-
Number of Channels:
8
-
OperatingTemperature:
-40°C~+85°C
-
Frequency - Cutoff or Center:
345MHz
-
Package:
UDFN-16
-
Manufacturer:
onsemi
-
Series:
Praetorian®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
Low Pass
-
Technology:
LC (Pi)
-
Center / Cutoff Frequency:
345MHz (Cutoff)
-
Resistance - Channel (Ohms):
45
-
Current:
15mA
-
Values:
L = 70nH (Total), C = 11.5pF (Total)
-
Operating Temperature:
-40°C ~ 85°C
-
Applications:
Data Lines for Mobile Devices
-
Voltage - Rated:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
16-UFDFN Exposed Pad
-
Size / Dimension:
0.130" L x 0.053" W (3.30mm x 1.35mm)
-
Height:
0.024" (0.60mm)
-
Base Part Number:
EMI9408
-
detail:
LC (Pi) EMI Filter 5th Order Low Pass 8 Channel L = 70nH (Total), C = 11.5pF (Total) 15mA 16-UFDFN Exposed Pad
