دیتاشیت EFR32MG12P433F1024IM48-CR

مشخصات دیتاشیت

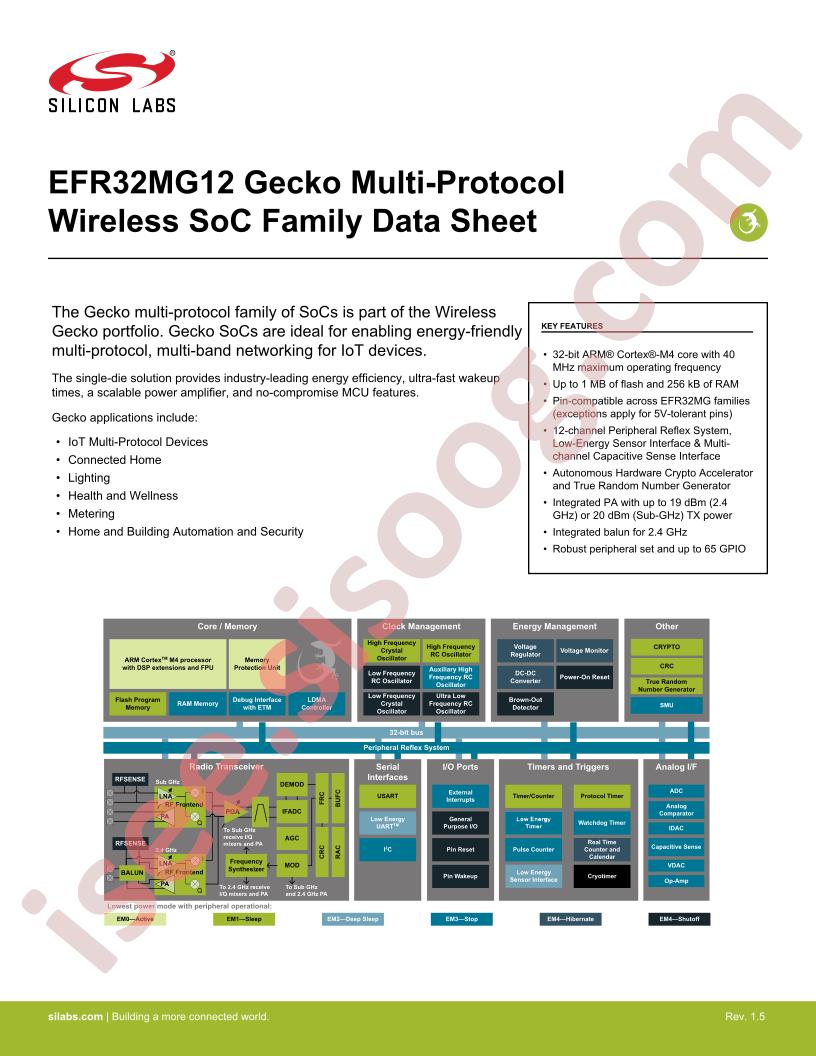

دانلود دیتاشیت EFR32MG12 Family Datasheet	EFR32MG12 Family Datasheet Datasheet

RoHS: true
Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
Data Rate: 2Mbps
Datasheet: SILICON LABS EFR32MG12P433F1024IM48-CR
Interface: I2C,I2S,SPI,UART,USART
Applications: 802.15.4,Bluetooth
Frequency Range: 169MHz~915MHz;2.4GHz
Receive Current: 8.4mA
Operating Voltage: 1.8V~3.8V
Operating Temperature: -40°C~+125°C
Current Of Transmitting: 8.5mA
Package: QFN-48-EP(7x7)
Manufacturer: SILICON LABS
RF Family/Standard: 802.15.4, Bluetooth
Current - Transmitting: 8.5mA ~ 35.3mA
Serial Interfaces: I²C, I²S, SPI, UART, USART
Package / Case: 48-VFQFN Exposed Pad
Voltage - Supply: 1.8V ~ 3.8V
Modulation: 2FSK, 4FSK, ASK, BPSK, DBPSK, DSSS, GFSK, GMSK, MSK, OOK, O-QPSK
Supplier Device Package: 48-QFN (7x7)
Series: Mighty Gecko
Sensitivity: -126.2dBm
Current - Receiving: 8.4mA ~ 10.8mA
GPIO: 28
Data Rate (Max): 2Mbps
Memory Size: 1MB Flash, 256kB RAM
Mounting Type: Surface Mount
Frequency: 169MHz ~ 915MHz, 2.4GHz
Power - Output: 20dBm
Type: TxRx + MCU
Packaging: Tape & Reel (TR)
Protocol: Bluetooth v5.0, Thread, Zigbee®
Part Status: Active
detail: IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.0, Thread, Zigbee® 169MHz ~ 915MHz, 2.4GHz 48-VFQFN Exposed Pad
