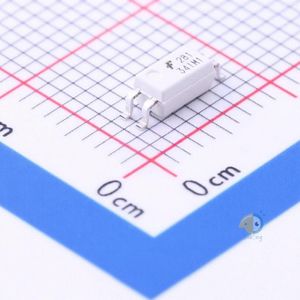

HMHA281R2 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | HMHA281R2 |
|---|---|
| حجم فایل | 70.016 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 11 |
دانلود دیتاشیت HMHA281R2 |
دانلود دیتاشیت |
|---|
سایر مستندات
HMHAA281, 2801 Series 10 pages
مشخصات فنی
- RoHS: true
- Category: Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Phototransistor Output
- Datasheet: onsemi HMHA281R2
- Fall time: 3us@2mA,100Ω
- Rise time: 3us@2mA,100Ω
- Output Type: Phototransistor
- Output Current: 50mA
- Forward Voltage: 1.3V
- Reverse Voltage: 6V
- Number of Outputs: 1
- Input voltage type: DC
- Operating Temperature: -55°C~+100°C
- Receiving End Voltage: 80V
- Isolation Voltage(rms): 3750V
- Collector-Emitter Saturation Voltage (Vce(sat)@Ic,IF): 0.4V@2.4mA,8mA
- Package: SOP-4-175mil
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Number of Channels: 1
- Voltage - Isolation: 3750Vrms
- Current Transfer Ratio (Min): 50% @ 5mA
- Current Transfer Ratio (Max): 600% @ 5mA
- Turn On / Turn Off Time (Typ): -
- Rise / Fall Time (Typ): 3µs, 3µs
- Input Type: DC
- Voltage - Output (Max): 80V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.3V (Max)
- Current - DC Forward (If) (Max): 50mA
- Vce Saturation (Max): 400mV
- Mounting Type: Surface Mount
- Package / Case: 4-SOIC (0.173", 4.40mm Width)
- Supplier Device Package: 4-Mini-Flat
- Base Part Number: HMHA28
- detail: Optoisolator Transistor Output 3750Vrms 1 Channel 4-Mini-Flat
