FDC2512 دیتاشیت

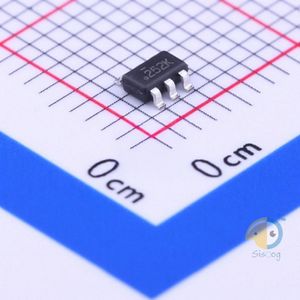

FDC2512

مشخصات دیتاشیت

نام دیتاشیت FDC2512
حجم فایل 70.016 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

مشاهده دیتاشیت FDC2512

دانلود دیتاشیت

سایر مستندات

FDC2512 7 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FDC2512
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 1.6W
  • Total Gate Charge (Qg@Vgs): 11nC@10V
  • Drain Source Voltage (Vdss): 150V
  • Input Capacitance (Ciss@Vds): 344pF@75V
  • Continuous Drain Current (Id): 1.4A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 425mΩ@10V,1.4A
  • Package: SOT-23-6
  • Manufacturer: onsemi
  • Series: PowerTrench®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 150V
  • Current - Continuous Drain (Id) @ 25°C: 1.4A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
  • Rds On (Max) @ Id, Vgs: 425mOhm @ 1.4A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 11nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 344pF @ 75V
  • FET Feature: -
  • Power Dissipation (Max): 1.6W (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SuperSOT™-6
  • Package / Case: SOT-23-6 Thin, TSOT-23-6
  • Base Part Number: FDC2512
  • detail: N-Channel 150V 1.4A (Ta) 1.6W (Ta) Surface Mount SuperSOT™-6
