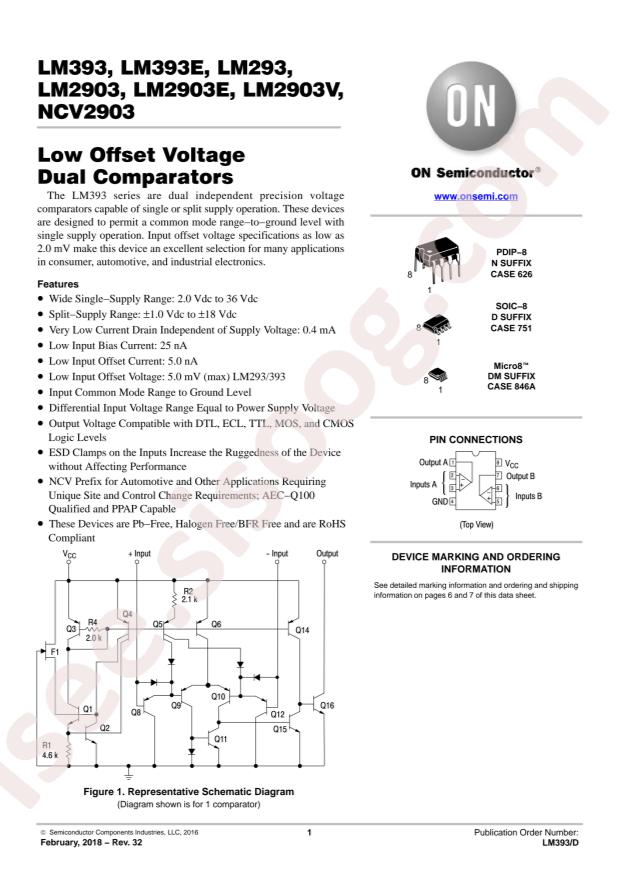

دیتاشیت LM2903DR2G
مشخصات دیتاشیت
| نام دیتاشیت | LM293, 393, 2903(V), NCV2903 Datasheet |
|---|---|
| حجم فایل | 285.772 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 12 |
دانلود دیتاشیت LM293, 393, 2903(V), NCV2903 Datasheet |
LM293, 393, 2903(V), NCV2903 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Operational Amplifier/Comparator/Comparators
- Datasheet: onsemi LM2903DR2G
- Output Type: Push Pull
- Supply Current: 2.5mA
- Supply Voltage: 2V~36V;1V~18V
- Number of Elements: 2
- Operating Temperature: -40°C~+105°C
- Input Bias Current (Ib): 0.25uA
- Input Offset Voltage (Vos): 7mV
- Input Hysteresis Voltage (Vhys): -
- Common Mode Rejection Ratio (CMRR): 81.94dB
- Package: SOP-8
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: General Purpose
- Voltage - Supply, Single/Dual (±): 2V ~ 36V, ±1V ~ 18V
- Voltage - Input Offset (Max): 7mV @ 30V
- Current - Input Bias (Max): 0.25µA @ 5V
- Current - Output (Typ): 16mA @ 5V
- Current - Quiescent (Max): 2.5mA
- CMRR, PSRR (Typ): -
- Propagation Delay (Max): -
- Hysteresis: -
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SOIC
- Base Part Number: LM2903
- detail: Comparator General Purpose CMOS, DTL, ECL, MOS, Open-Collector, TTL 8-SOIC
