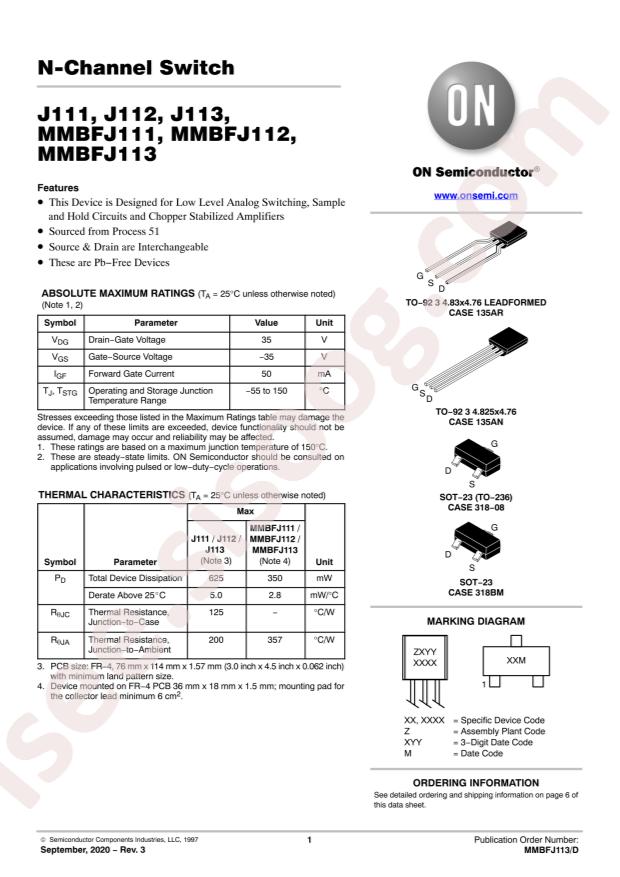

MMBFJ113 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MMBFJ113 |
|---|---|
| حجم فایل | 80.924 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 11 |
دانلود دیتاشیت MMBFJ113 |
دانلود دیتاشیت |
|---|
سایر مستندات
J111-13, MMBFJ111-13 10 pages
مشخصات فنی
- RoHS: true
- Type: -
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: onsemi MMBFJ113
- Power Dissipation (Pd): -
- Total Gate Charge (Qg@Vgs): -
- Drain Source Voltage (Vdss): -
- Input Capacitance (Ciss@Vds): -
- Continuous Drain Current (Id): -
- Gate Threshold Voltage (Vgs(th)@Id): -
- Reverse Transfer Capacitance (Crss@Vds): -
- Drain Source On Resistance (RDS(on)@Vgs,Id): -
- Package: SOT-23(TO-236)
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- FET Type: N-Channel
- Voltage - Breakdown (V(BR)GSS): 35V
- Current - Drain (Idss) @ Vds (Vgs=0): 2mA @ 15V
- Voltage - Cutoff (VGS off) @ Id: 500mV @ 1µA
- Input Capacitance (Ciss) (Max) @ Vds: -
- Resistance - RDS(On): 100 Ohms
- Power - Max: 350mW
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3
- Base Part Number: MMBFJ1
- detail: JFET N-Channel 35V 350mW Surface Mount SOT-23-3
