NTJD4401NT1G دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت NTJD4401NT1G	دانلود دیتاشیت

RoHS: true
Category: Triode/MOS Tube/Transistor/MOSFETs

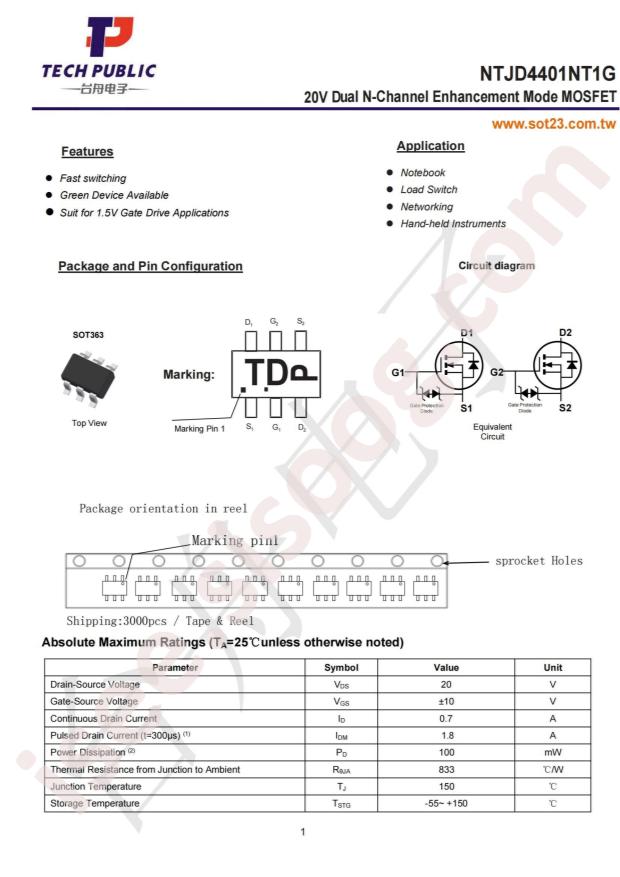

Datasheet: TECH PUBLIC NTJD4401NT1G
Package: SOT-363
Manufacturer: TECH PUBLIC
Type: 2 N-Channel
Operating Temperature: -55°C~+150°C@(Tj)
Power Dissipation (Pd): 270mW
Total Gate Charge (Qg@Vgs): 3nC@4.5V
Drain Source Voltage (Vdss): 20V
Input Capacitance (Ciss@Vds): 46pF@20V
Continuous Drain Current (Id): 630mA
Gate Threshold Voltage (Vgs(th)@Id): 1.5V@250uA
Drain Source On Resistance (RDS(on)@Vgs,Id): 375mΩ@4.5V,630mA
Series: -
Packaging: Tape & Reel (TR)
Part Status: Obsolete
FET Type: 2 N-Channel (Dual)
FET Feature: Logic Level Gate
Drain to Source Voltage (Vdss): 20V
Current - Continuous Drain (Id) @ 25°C: 630mA
Rds On (Max) @ Id, Vgs: 375mOhm @ 630mA, 4.5V
Vgs(th) (Max) @ Id: 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds: 46pF @ 20V
Power - Max: 270mW
Mounting Type: Surface Mount
Package / Case: 6-TSSOP, SC-88, SOT-363
Supplier Device Package: SC-88/SC70-6/SOT-363
Base Part Number: NTJD44
detail: Mosfet Array 2 N-Channel (Dual) 20V 630mA 270mW Surface Mount SC-88/SC70-6/SOT-363
