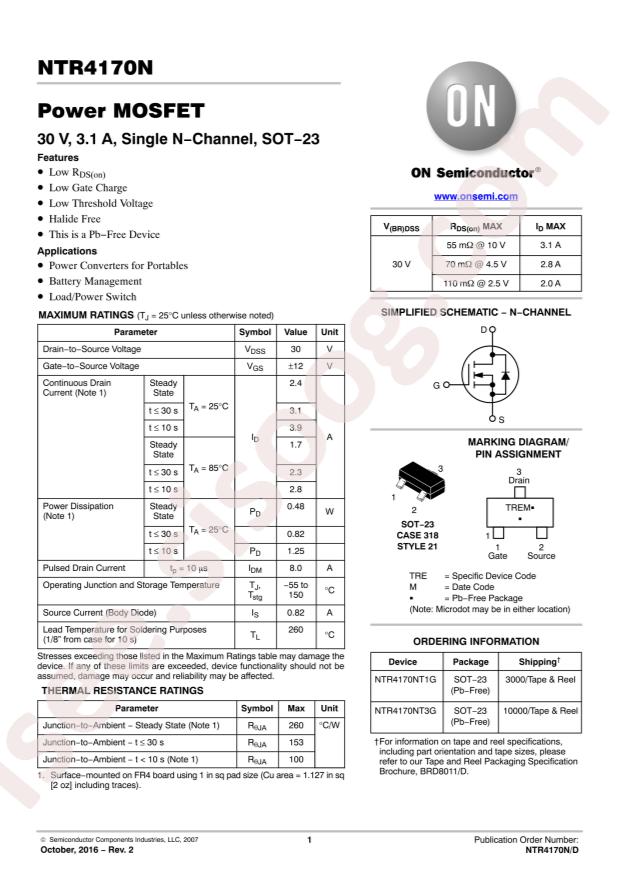

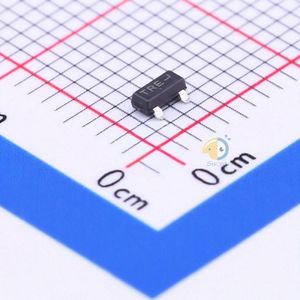

NTR4170NT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTR4170NT1G
|
|
حجم فایل
|
89.005
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NTR4170NT1G
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
480mW
-
Total Gate Charge (Qg@Vgs):
4.76nC@4.5V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
432pF@15V
-
Continuous Drain Current (Id):
2.4A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
55mΩ@10V,3.2A
-
Package:
SOT-23(TO-236)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
-
-
Drive Voltage (Max Rds On, Min Rds On):
2.5V, 10V
-
Rds On (Max) @ Id, Vgs:
55mOhm @ 3.2A, 10V
-
Vgs(th) (Max) @ Id:
1.4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
4.76nC @ 4.5V
-
Vgs (Max):
±12V
-
Input Capacitance (Ciss) (Max) @ Vds:
432pF @ 15V
-
FET Feature:
-
-
Power Dissipation (Max):
480mW (Ta)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SOT-23-3 (TO-236)
-
Package / Case:
TO-236-3, SC-59, SOT-23-3
-
Base Part Number:
NTR417
-
detail:
N-Channel 30V 480mW (Ta) Surface Mount SOT-23-3 (TO-236)
