NTZD3155CT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTZD3155CT1G
|
|
حجم فایل
|
77.781
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
3
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
TECH PUBLIC NTZD3155CT1G
-

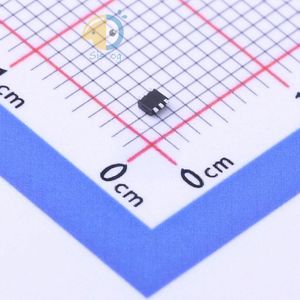

Package:
SOT-563
-
Manufacturer:
TECH PUBLIC
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N and P-Channel
-
FET Feature:
Logic Level Gate
-
Drain to Source Voltage (Vdss):
20V
-
Current - Continuous Drain (Id) @ 25°C:
540mA, 430mA
-
Rds On (Max) @ Id, Vgs:
550mOhm @ 540mA, 4.5V
-
Vgs(th) (Max) @ Id:
1V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
2.5nC @ 4.5V
-
Input Capacitance (Ciss) (Max) @ Vds:
150pF @ 16V
-
Power - Max:
250mW
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
SOT-563, SOT-666
-
Supplier Device Package:
SOT-563
-
Base Part Number:
NTZD3155
-
detail:
Mosfet Array N and P-Channel 20V 540mA, 430mA 250mW Surface Mount SOT-563
