NVR5198NLT1G دیتاشیت

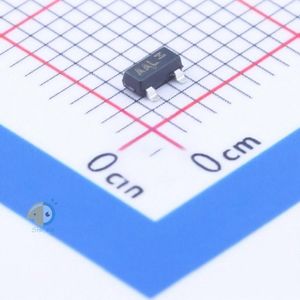

NVR5198NLT1G

مشخصات دیتاشیت

نام دیتاشیت NVR5198NLT1G
حجم فایل 94.819 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

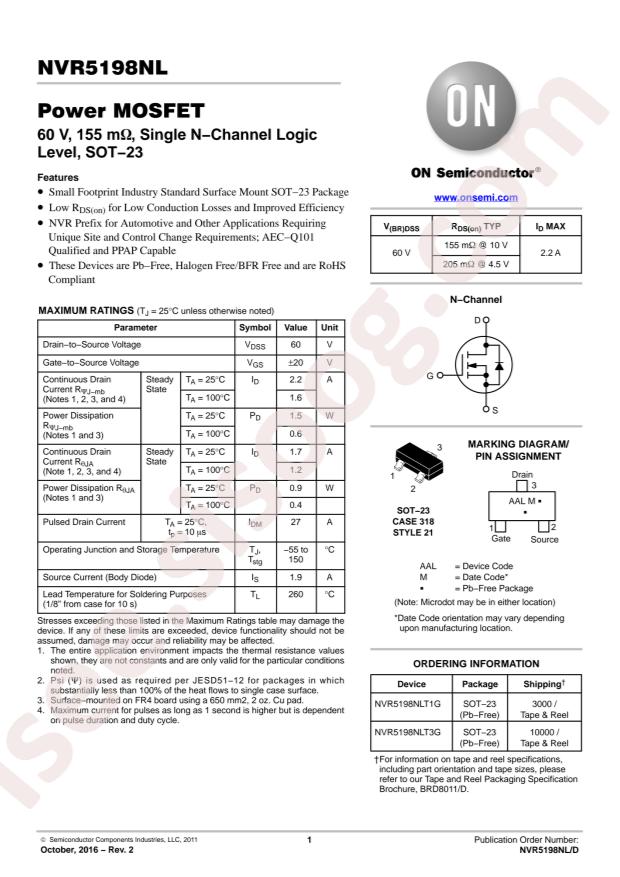

مشاهده دیتاشیت NVR5198NLT1G

دانلود دیتاشیت

سایر مستندات

NVR5198NL 6 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi NVR5198NLT1G
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 900mW
  • Total Gate Charge (Qg@Vgs): 5.1nC@10V
  • Drain Source Voltage (Vdss): 60V
  • Input Capacitance (Ciss@Vds): 182pF@25V
  • Continuous Drain Current (Id): 1.7A
  • Gate Threshold Voltage (Vgs(th)@Id): 2.5V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 155mΩ@10V,1A
  • Package: SOT-23(TO-236)
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 60V
  • Current - Continuous Drain (Id) @ 25°C: 1.7A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 155mOhm @ 1A, 10V
  • Vgs(th) (Max) @ Id: 2.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 5.1nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 182pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 900mW (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SOT-23-3 (TO-236)
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Base Part Number: NVR519
  • detail: N-Channel 60V 1.7A (Ta) 900mW (Ta) Surface Mount SOT-23-3 (TO-236)
