NUP4114UCW1T2G دیتاشیت

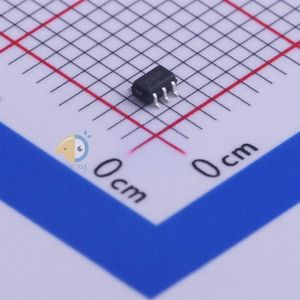

NUP4114UCW1T2G

مشخصات دیتاشیت

نام دیتاشیت NUP4114UCW1T2G
حجم فایل 83.125 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

دانلود دیتاشیت NUP4114UCW1T2G

دانلود دیتاشیت

سایر مستندات

NUP4114, SZNUP4114 Series 11 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: onsemi NUP4114UCW1T2G
  • Number of Lines: 4
  • Clamping Voltage@Ipp: 10V
  • Breakdown Voltage (VBR): 5.5V
  • Package: SC-88-6
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Steering (Rail to Rail)
  • Unidirectional Channels: 4
  • Voltage - Reverse Standoff (Typ): 5.5V (Max)
  • Voltage - Breakdown (Min): 5.5V
  • Voltage - Clamping (Max) @ Ipp: 10V
  • Current - Peak Pulse (10/1000µs): 8A (8/20µs)
  • Power - Peak Pulse: -
  • Power Line Protection: Yes
  • Applications: General Purpose
  • Capacitance @ Frequency: 0.6pF @ 1MHz
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 6-TSSOP, SC-88, SOT-363
  • Supplier Device Package: SC-88/SC70-6/SOT-363
  • Base Part Number: NUP4114
  • detail: 10V Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount SC-88/SC70-6/SOT-363
