NUD3124LT1G دیتاشیت

NUD3124LT1G

مشخصات دیتاشیت

نام دیتاشیت NUD3124LT1G
حجم فایل 88.125 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

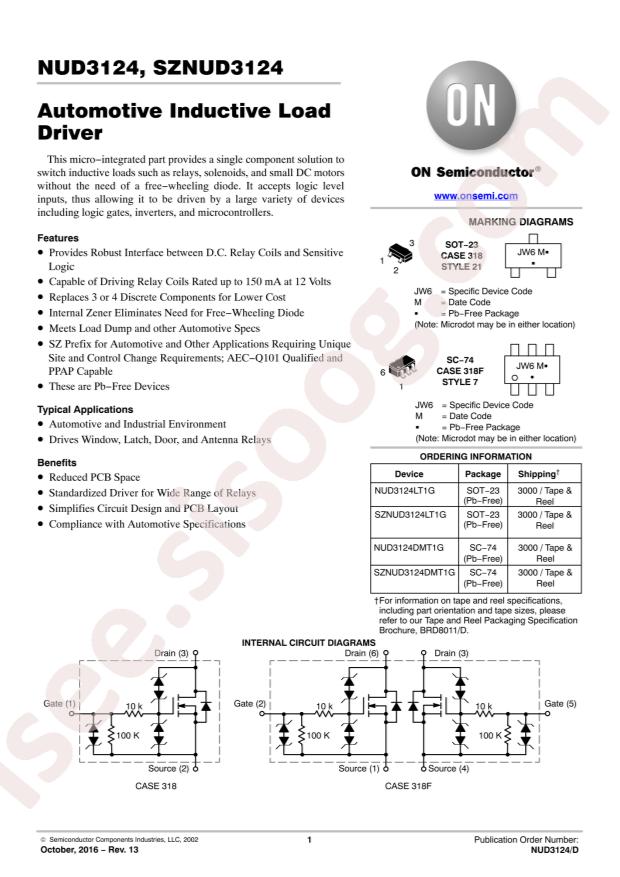

مشاهده دیتاشیت NUD3124LT1G

دانلود دیتاشیت

سایر مستندات

NUD/SZNUD3124 10 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: onsemi NUD3124LT1G
  • Interface: -
  • On Resistance: 800mΩ
  • Output Current: 150mA
  • Operating Temperature: -40°C~+125°C@(Ta)

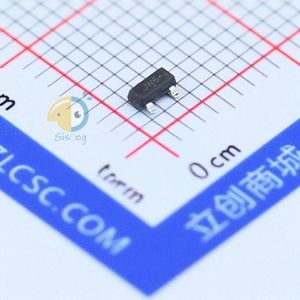

  • Package: SOT-23(TO-236)
  • Manufacturer: onsemi
  • Series: MicroIntegration™
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Switch Type: Relay, Solenoid Driver
  • Number of Outputs: 1
  • Ratio - Input:Output: 1:1
  • Output Configuration: Low Side
  • Output Type: N-Channel
  • Voltage - Load: 28V (Max)
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 150mA
  • Rds On (Typ): 800mOhm (Max)
  • Input Type: -
  • Features: -
  • Fault Protection: -
  • Mounting Type: Surface Mount
  • Supplier Device Package: SOT-23-3 (TO-236)
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Base Part Number: NUD3124
  • detail: Power Switch/Driver 1:1 N-Channel 150mA SOT-23-3 (TO-236)
