دیتاشیت CAT4104V-GT3

CAT4104

مشخصات دیتاشیت

نام دیتاشیت CAT4104
حجم فایل 182.685 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

دانلود دیتاشیت CAT4104

CAT4104 Datasheet

مشخصات

  • RoHS: true
  • Type: Linear
  • Dimming: PWM
  • Category: Nixie Tube Driver/LED Driver/LED Drivers
  • Channels: 4
  • Datasheet: onsemi CAT4104V-GT3
  • Input Voltage: 3V~5.5V
  • Output Current: 175mA
  • Output Voltage: 25V
  • Operating temperature: -40°C~+85°C

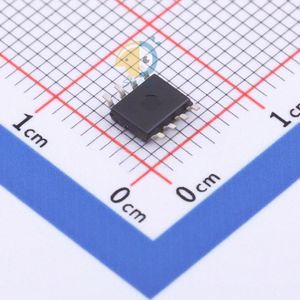

  • Package: SOP-8
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Topology: -
  • Internal Switch(s): Yes
  • Number of Outputs: 4
  • Voltage - Supply (Min): 3V
  • Voltage - Supply (Max): 5.5V
  • Voltage - Output: 25V
  • Current - Output / Channel: 175mA
  • Frequency: -
  • Applications: Backlight, Lighting
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: CAT4104
  • detail: LED Driver IC 4 Output Linear PWM Dimming 175mA 8-SOIC
