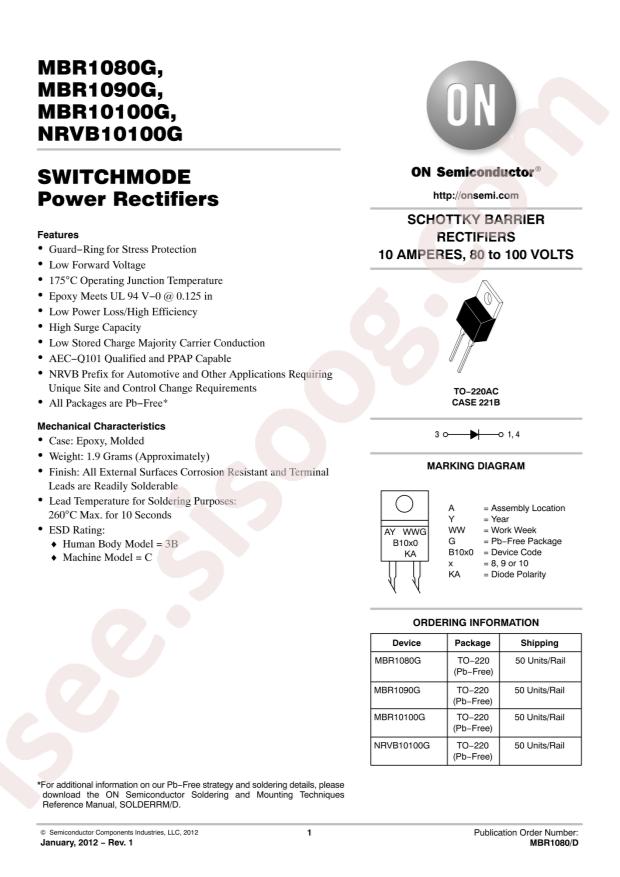

MBR10100G دیتاشیت

MBR10100G

مشخصات دیتاشیت

نام دیتاشیت MBR10100G
حجم فایل 72.045 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت MBR10100G

دانلود دیتاشیت

سایر مستندات

MBR1080, 1090, 10100 4 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: onsemi MBR10100G
  • Reverse Voltage (Vr): 100V
  • Forward Voltage (Vf@If): 800mV@10A
  • Reverse Leakage Current (Ir): 100uA@100V
  • Average Rectified Current (Io): 10A
  • Package: TO-220-2
  • Manufacturer: onsemi
  • Series: SWITCHMODE™
  • Packaging: Tube
  • Part Status: Active
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 100V
  • Current - Average Rectified (Io): 10A
  • Voltage - Forward (Vf) (Max) @ If: 800mV @ 10A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 100µA @ 100V
  • Capacitance @ Vr, F: -
  • Mounting Type: Through Hole
  • Package / Case: TO-220-2
  • Supplier Device Package: TO-220-2
  • Operating Temperature - Junction: -65°C ~ 175°C
  • Base Part Number: MBR1010
  • detail: Diode Schottky 100V 10A Through Hole TO-220-2
