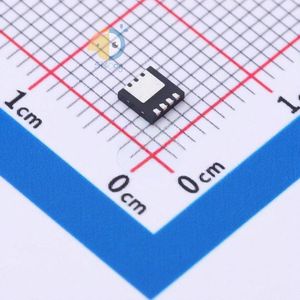

FDMC86160ET100 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FDMC86160ET100
|
|
حجم فایل
|
70.016
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FDMC86160ET100
-
Package:
PQFN-8
-
Manufacturer:
onsemi
-
Series:
PowerTrench®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
100V
-
Current - Continuous Drain (Id) @ 25°C:
9A (Ta), 43A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
6V, 10V
-
Rds On (Max) @ Id, Vgs:
14mOhm @ 9A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
22nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
1290pF @ 50V
-
FET Feature:
-
-
Power Dissipation (Max):
2.3W (Ta), 54W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
Power33
-
Package / Case:
8-PowerWDFN
-
Base Part Number:
FDMC86
-
detail:
N-Channel 100V 9A (Ta), 43A (Tc) 2.3W (Ta), 54W (Tc) Surface Mount Power33
