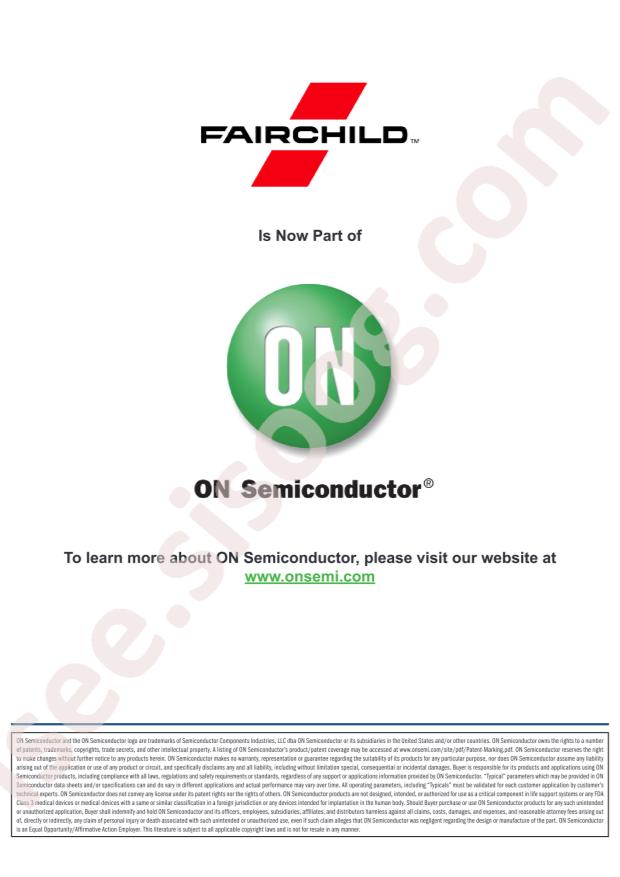

MOC3083SR2M دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MOC3083SR2M
|
|
حجم فایل
|
47.973
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
RoHS:
true
-
Category:
Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Thyristor Signal Output
-
SCR Type:
Two-way thyristor
-
Datasheet:
onsemi MOC3083SR2M
-
Forward Current:
60mA
-
Forward Voltage:
1.3V
-
Number of Outputs:
1
-
Operating Temperature:
-40°C~+85°C
-
Zero Crossing Circuit:
Yes
-
Isolation Voltage(rms):
4170V
-
Peak Off-state Voltage(Vdrm):
800V
-
RMS On-State Current(It(rms)):
-
-
Package:
SMD-6P
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Type:
Triac
-
Number of Channels:
1
-
Voltage - Isolation:
4170Vrms
-
Voltage - Off State:
800V
-
Static dV/dt (Min):
600V/µs
-
Current - LED Trigger (Ift) (Max):
5mA
-
Current - Hold (Ih):
500µA (Typ)
-
Turn On Time:
-
-
Voltage - Forward (Vf) (Typ):
1.3V
-
Current - DC Forward (If) (Max):
60mA
-
Mounting Type:
Surface Mount
-
Package / Case:
6-SMD, Gull Wing
-
Supplier Device Package:
6-SMD
-
Approval Agency:
UL
-
Base Part Number:
MOC308
-
detail:
Optoisolator Triac Output 4170Vrms 1 Channel 6-SMD
