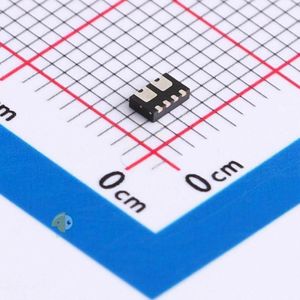

FDMB3800N دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت FDMB3800N	دانلود دیتاشیت

RoHS: true
Type: 2 N-Channel
Category: Triode/MOS Tube/Transistor/MOSFETs
Datasheet: onsemi FDMB3800N
Operating Temperature: -55°C~+150°C@(Tj)
Power Dissipation (Pd): 750mW
Total Gate Charge (Qg@Vgs): 5.6nC@5V
Drain Source Voltage (Vdss): 30V
Input Capacitance (Ciss@Vds): 465pF@15V
Continuous Drain Current (Id): 4.8A
Gate Threshold Voltage (Vgs(th)@Id): 3V@250uA
Drain Source On Resistance (RDS(on)@Vgs,Id): 40mΩ@4.8A,10V
Package: WDFN-8
Manufacturer: onsemi
Series: PowerTrench®
Packaging: Cut Tape (CT)
Part Status: Active
FET Type: 2 N-Channel (Dual)
FET Feature: Logic Level Gate
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 4.8A
Rds On (Max) @ Id, Vgs: 40mOhm @ 4.8A, 10V
Vgs(th) (Max) @ Id: 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 5.6nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds: 465pF @ 15V
Power - Max: 750mW
Mounting Type: Surface Mount
Package / Case: 8-PowerWDFN
Supplier Device Package: 8-MLP, MicroFET (3x1.9)
Base Part Number: FDMB38
detail: Mosfet Array 2 N-Channel (Dual) 30V 4.8A 750mW Surface Mount 8-MLP, MicroFET (3x1.9)
