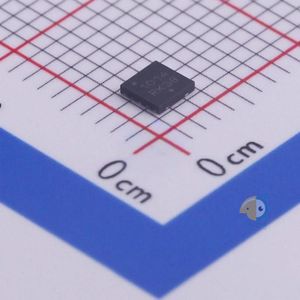

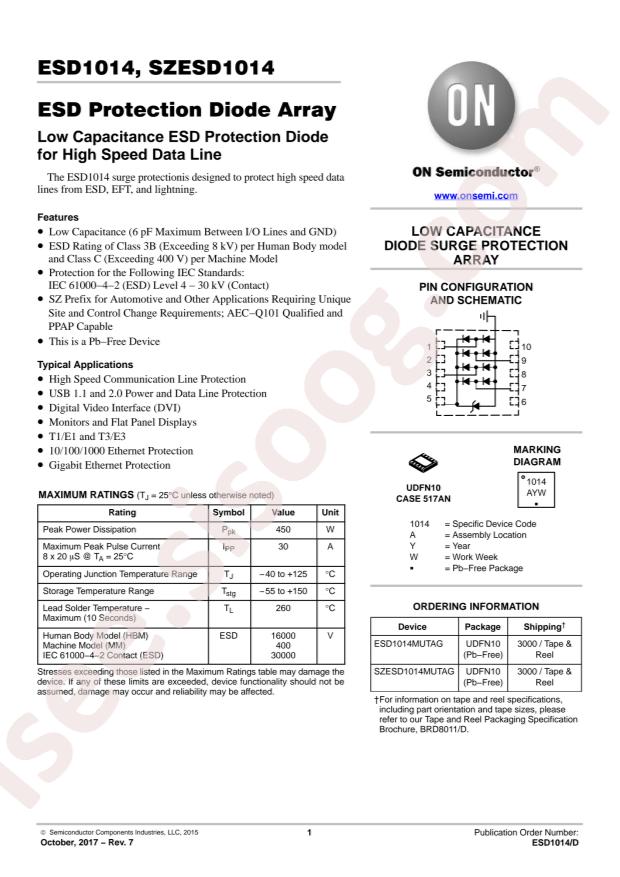

ESD1014MUTAG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ESD1014MUTAG
|
|
حجم فایل
|
89.576
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
3
|
مشخصات فنی
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Datasheet:
onsemi ESD1014MUTAG
-
Clamping Voltage@Ipp:
11V
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Breakdown Voltage (VBR):
5V
-
Peak Pulse Power(Ppp)@8/20us:
450W
-
Junction Capacitance(Cj)@1MHz:
3.8pF@1MHz
-
Reverse Stand-Off Voltage (Vrwm):
3.3V
-
Package:
DFN-10(2.6x2.6)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
Steering (Rail to Rail)
-
Unidirectional Channels:
4
-
Voltage - Reverse Standoff (Typ):
3.3V (Max)
-
Voltage - Breakdown (Min):
5V
-
Voltage - Clamping (Max) @ Ipp:
11V
-
Current - Peak Pulse (10/1000µs):
30A (8/20µs)
-
Power - Peak Pulse:
450W
-
Power Line Protection:
Yes
-
Applications:
General Purpose
-
Capacitance @ Frequency:
3.8pF @ 1MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
10-UFDFN Exposed Pad
-
Supplier Device Package:
10-UDFN (2.6x2.6)
-
Base Part Number:
ESD1014
-
detail:
11V Clamp 30A (8/20µs) Ipp Tvs Diode Surface Mount 10-UDFN (2.6x2.6)
