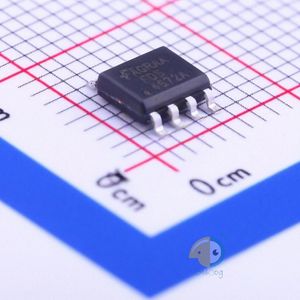

FDS4672A دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FDS4672A
|
|
حجم فایل
|
70.016
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FDS4672A
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
2.5W
-
Total Gate Charge (Qg@Vgs):
49nC@4.5V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
4766pF@20V
-
Continuous Drain Current (Id):
11A
-
Gate Threshold Voltage (Vgs(th)@Id):
2V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
13mΩ@4.5V,11A
-
Package:
SOP-8
-
Manufacturer:
onsemi
-
Series:
PowerTrench®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
40V
-
Current - Continuous Drain (Id) @ 25°C:
11A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V
-
Rds On (Max) @ Id, Vgs:
13mOhm @ 11A, 4.5V
-
Vgs(th) (Max) @ Id:
2V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
49nC @ 4.5V
-
Vgs (Max):
±12V
-
Input Capacitance (Ciss) (Max) @ Vds:
4766pF @ 20V
-
FET Feature:
-
-
Power Dissipation (Max):
2.5W (Ta)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-SOIC
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Base Part Number:
FDS46
-
detail:
N-Channel 40V 11A (Ta) 2.5W (Ta) Surface Mount 8-SOIC
