BAV70WT1G دیتاشیت

BAV70WT1G

مشخصات دیتاشیت

نام دیتاشیت BAV70WT1G
حجم فایل 77.011 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

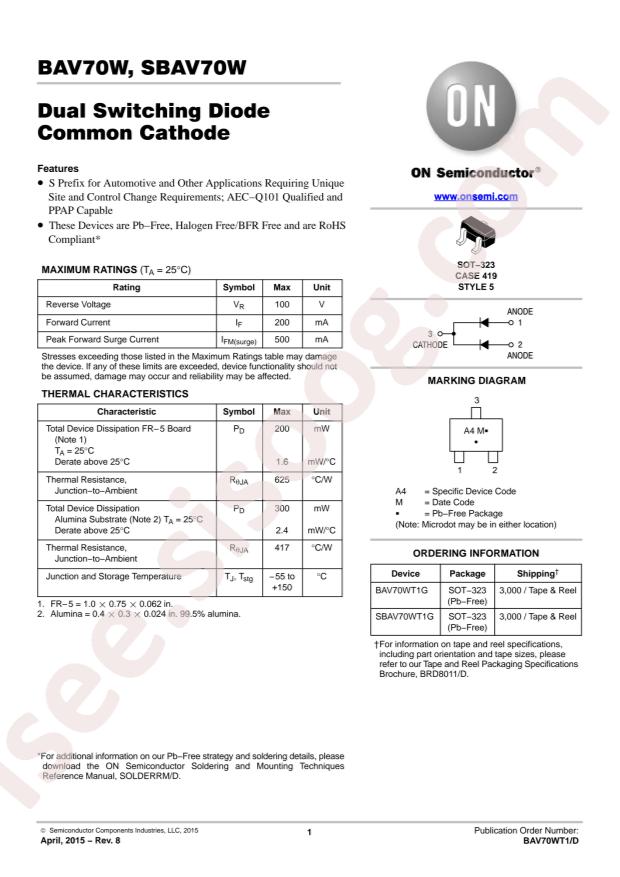

مشاهده دیتاشیت BAV70WT1G

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Switching Diode
  • Datasheet: onsemi BAV70WT1G
  • Power Dissipation: 300mW
  • Diode Configuration: Dual Common Cathode
  • Reverse Voltage (Vr): 100V
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Forward Voltage (Vf@If): 1.25V@150mA
  • Reverse Leakage Current: 1uA@100V
  • Reverse Recovery Time (trr): 6ns
  • Average Rectified Current (Io): 200mA

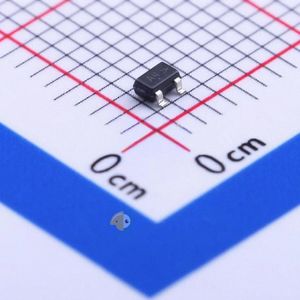

  • Package: SOT-323(SC-70)
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 70V
  • Current - Average Rectified (Io) (per Diode): 200mA
  • Voltage - Forward (Vf) (Max) @ If: 1.25V @ 150mA
  • Speed: Small Signal =< 200mA (Io), Any Speed
  • Current - Reverse Leakage @ Vr: 5µA @ 70V
  • Operating Temperature - Junction: 150°C (Max)
  • Mounting Type: Surface Mount
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: SOT-23-3 (TO-236)
  • Base Part Number: BAV70
  • detail: Diode Array 1 Pair Common Cathode Standard 70V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3
