دیتاشیت FAN7171MX-F085

FAN7171MX-F085

مشخصات دیتاشیت

نام دیتاشیت FAN7171MX-F085
حجم فایل 88.372 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

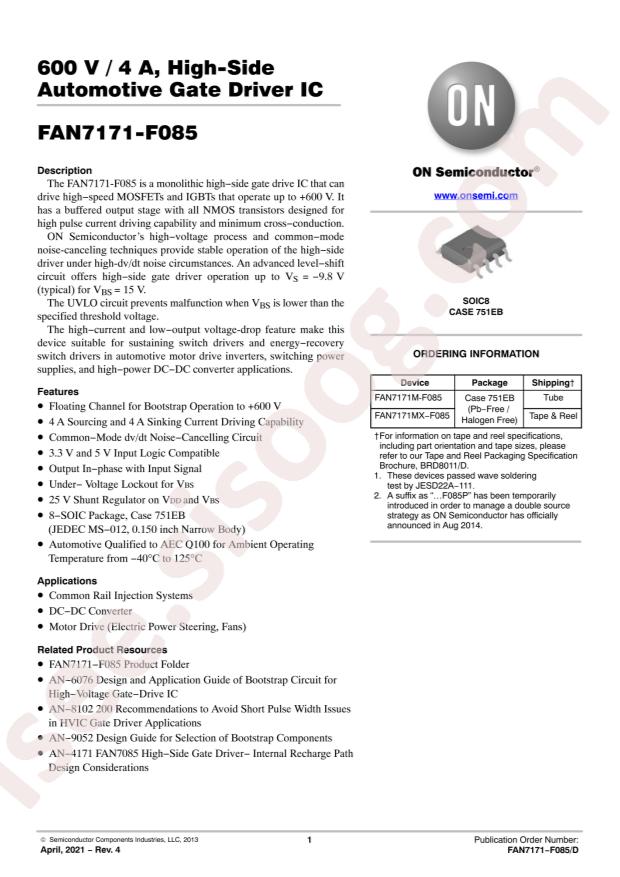

FAN7171MX-F085

دانلود دیتاشیت

سایر مستندات

FAN7171_F085 11 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: onsemi FAN7171MX-F085
  • Fall Time: 15ns
  • Load Type: IGBT;MOSFET
  • Rise Time: 25ns
  • Supply Voltage: 10V~20V
  • Number of Drivers: 1
  • Driven Configuration: High Side
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Peak Output Current(sink): 4A
  • Peak Output Current(source): 4A
  • Package: SOIC-8
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q100
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Channel Type: Single
  • Gate Type: IGBT, N-Channel MOSFET
  • Voltage - Supply: 10V ~ 20V
  • Logic Voltage - VIL, VIH: 0.8V, 2.5V
  • Current - Peak Output (Source, Sink): 4A, 4A
  • Input Type: Non-Inverting
  • High Side Voltage - Max (Bootstrap): 600V
  • Rise / Fall Time (Typ): 25ns, 15ns
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: FAN7171
  • detail: High-Side Gate Driver IC Non-Inverting 8-SOIC
