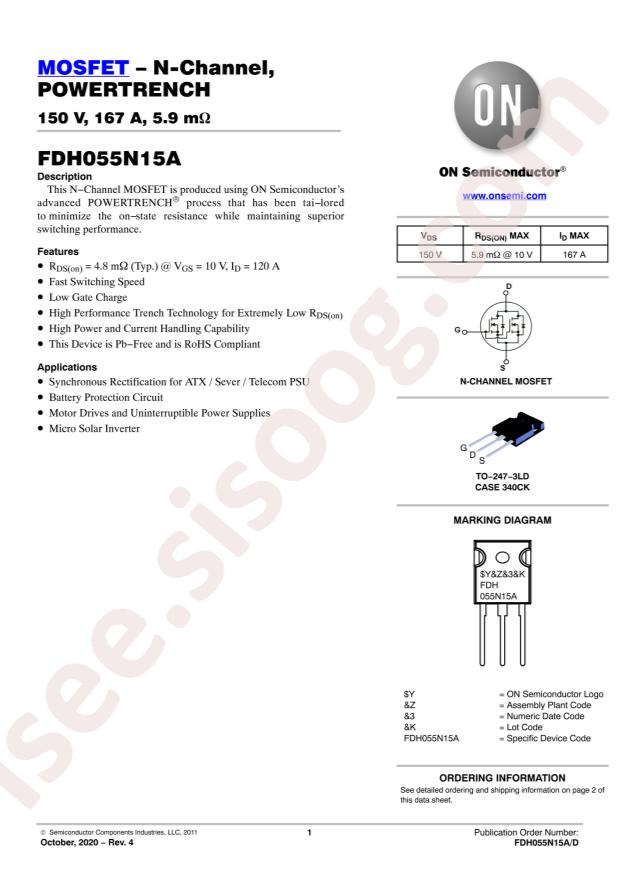

دیتاشیت FDH055N15A
مشخصات دیتاشیت
| نام دیتاشیت |
FDH055N15A
|
| حجم فایل |
955.159
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
9
|
مشخصات
-
RoHS:
true
-
Type:
-
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FDH055N15A
-
Power Dissipation (Pd):
-
-
Total Gate Charge (Qg@Vgs):
-
-
Drain Source Voltage (Vdss):
-
-
Input Capacitance (Ciss@Vds):
-
-
Continuous Drain Current (Id):
-
-
Gate Threshold Voltage (Vgs(th)@Id):
-
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
-
-
Package:
TO-247AC-3
-
Manufacturer:
onsemi
-
Series:
PowerTrench®
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
150V
-
Current - Continuous Drain (Id) @ 25°C:
158A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
5.9mOhm @ 120A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
92nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
9445pF @ 75V
-
FET Feature:
-
-
Power Dissipation (Max):
429W (Tc)
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-247-3
-
Package / Case:
TO-247-3
-
Base Part Number:
FDH055
-
detail:
N-Channel 150V 158A (Tc) 429W (Tc) Through Hole TO-247-3
