- دیتاشیت FDH3632

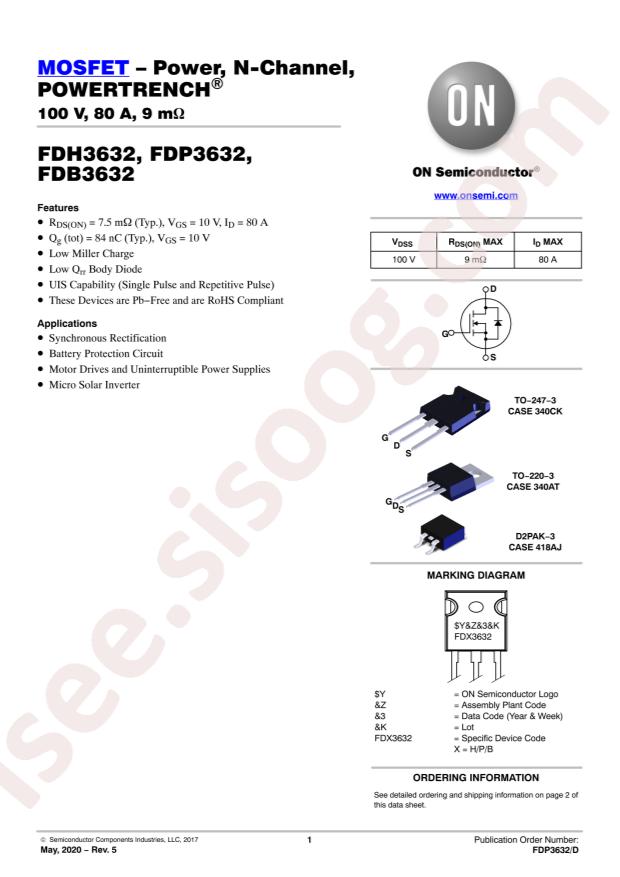

FDH3632 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | FDH3632 |
|---|---|
| حجم فایل | 56.933 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 17 |
دانلود دیتاشیت FDH3632 |
دانلود دیتاشیت |
|---|
سایر مستندات
FDB3632, FDH3632, FDP3632 17 pages
مشخصات فنی
- RoHS: true
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: onsemi FDH3632
- Operating Temperature: -55°C~+175°C@(Tj)
- Power Dissipation (Pd): 310W
- Total Gate Charge (Qg@Vgs): 110nC@10V
- Drain Source Voltage (Vdss): 100V
- Input Capacitance (Ciss@Vds): 6000pF@25V
- Continuous Drain Current (Id): null;80A
- Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 9mΩ@80A,10V
- Package: TO-247
- Manufacturer: onsemi
- Series: PowerTrench®
- Packaging: Tube
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100V
- Current - Continuous Drain (Id) @ 25°C: 12A (Ta), 80A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
- Rds On (Max) @ Id, Vgs: 9mOhm @ 80A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 110nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 6000pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 310W (Tc)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-3
- Package / Case: TO-247-3
- Base Part Number: FDH363
- detail: N-Channel 100V 12A (Ta), 80A (Tc) 310W (Tc) Through Hole TO-247-3
