MJL1302AG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MJL1302AG
|
|
حجم فایل
|
96.188
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:

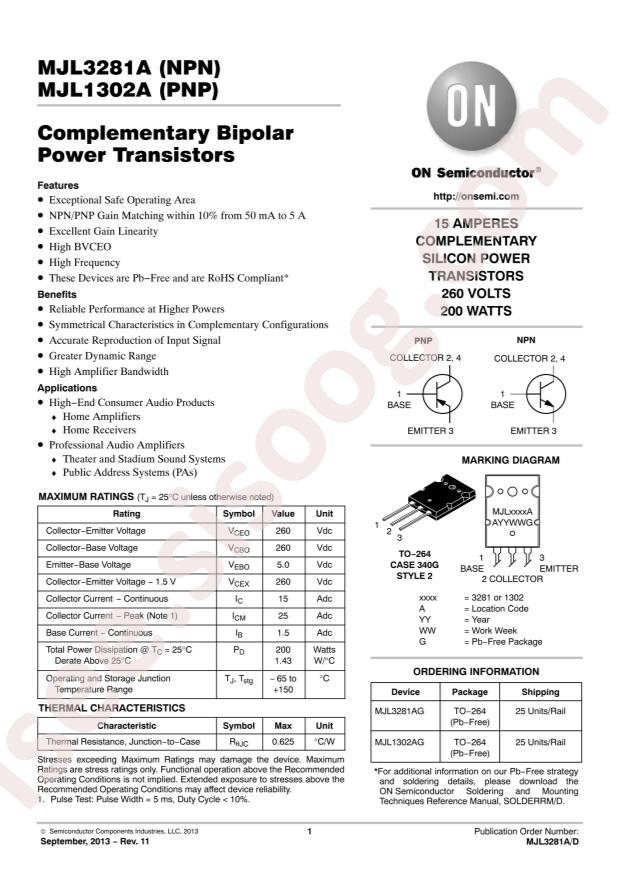

onsemi MJL1302AG
-
Transistor Type:
PNP
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Collector Current (Ic):
15A
-
Power Dissipation (Pd):
200W
-
Transition Frequency (fT):
30MHz
-
DC Current Gain (hFE@Ic,Vce):
75@5A,5V
-
Collector Cut-Off Current (Icbo):
50uA
-
Collector-Emitter Breakdown Voltage (Vceo):
260V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
3V@1A,10A
-
Package:
TO-264-3
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
15A
-
Voltage - Collector Emitter Breakdown (Max):
260V
-
Vce Saturation (Max) @ Ib, Ic:
3V @ 1A, 10A
-
Current - Collector Cutoff (Max):
50µA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
75 @ 5A, 5V
-
Power - Max:
200W
-
Frequency - Transition:
30MHz
-
Mounting Type:
Through Hole
-
Package / Case:
TO-264-3, TO-264AA
-
Supplier Device Package:
TO-264
-
Base Part Number:
MJL13
-
detail:
Bipolar (BJT) Transistor PNP 260V 15A 30MHz 200W Through Hole TO-264
