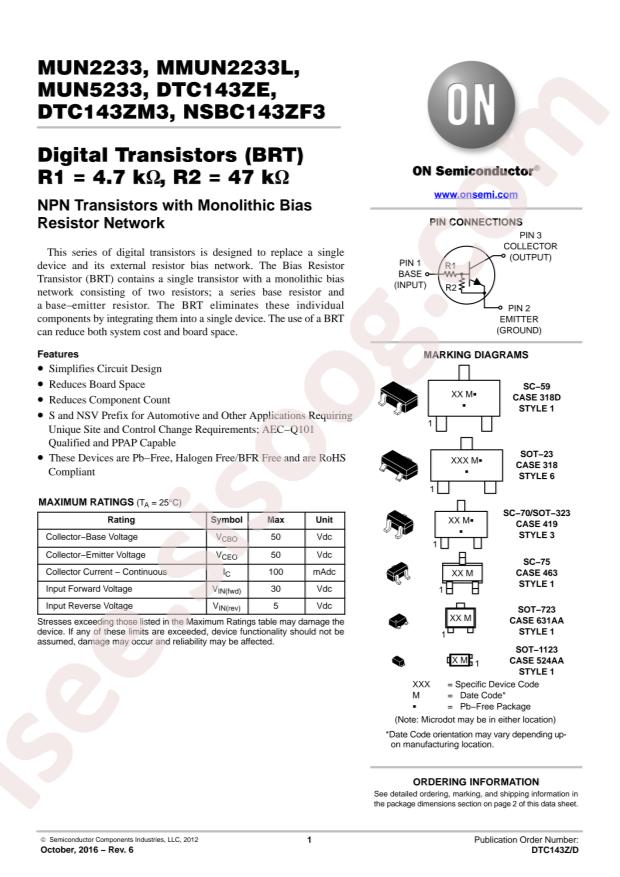

DTC143ZET1G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | DTC143ZET1G |
|---|---|
| حجم فایل | 90.553 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 13 |
دانلود دیتاشیت DTC143ZET1G |
دانلود دیتاشیت |
|---|
سایر مستندات
مشخصات فنی
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Digital Transistors
- Datasheet: onsemi DTC143ZET1G
- Transistor Type: 1 NPN - Pre Biased
- Collector Current (Ic): 100mA
- Power Dissipation (Pd): 200mW
- DC Current Gain (hFE@Ic,Vce): 80@5mA,10V
- Collector Cut-Off Current (Icbo): 500nA
- Collector-Emitter Breakdown Voltage (Vceo): 50V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 250mV@1mA,10mA
- Package: SOT-523(SC-75)
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 1mA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Power - Max: 200mW
- Mounting Type: Surface Mount
- Package / Case: SC-75, SOT-416
- Supplier Device Package: SC-75, SOT-416
- Base Part Number: DTC143
- detail: Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 100mA 200mW Surface Mount SC-75, SOT-416
