دیتاشیت 2N7002KT1G
مشخصات دیتاشیت
| نام دیتاشیت | 2N/V7002K Datasheet |
|---|---|
| حجم فایل | 110.403 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 6 |
دانلود دیتاشیت 2N/V7002K Datasheet |
2N/V7002K Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs

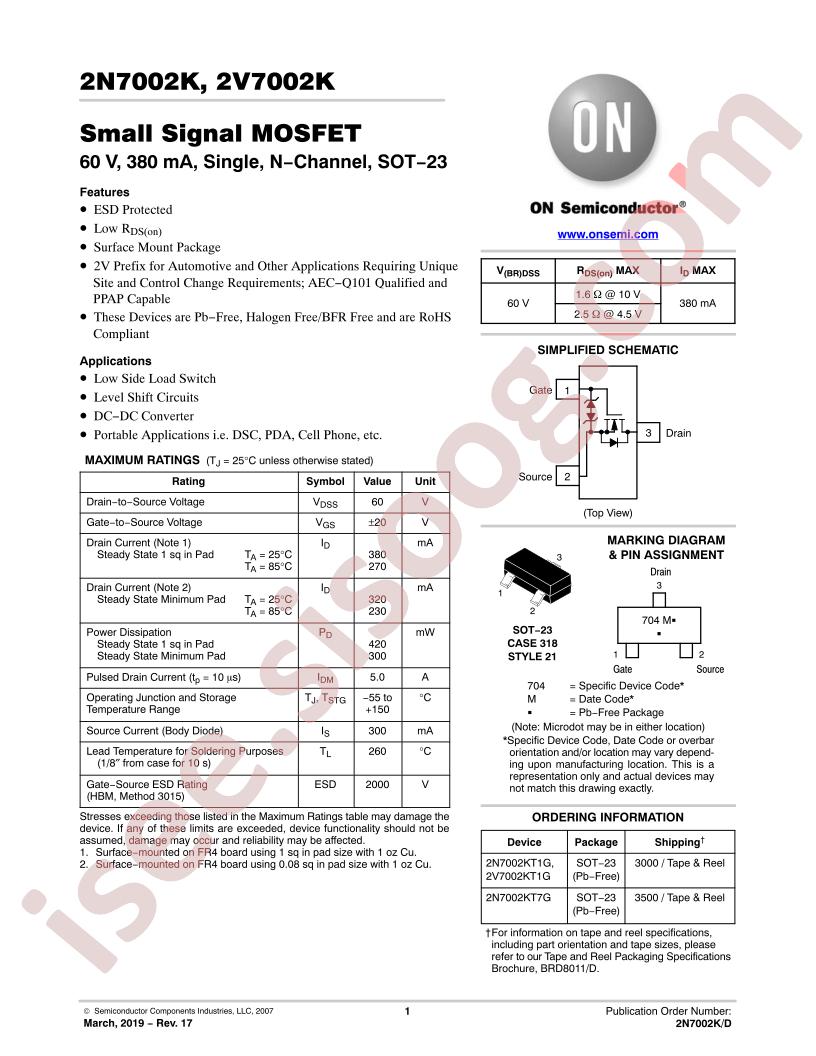

- Datasheet: onsemi 2N7002KT1G
- Operating Temperature: -55°C~+150°C@(Tj)
- Power Dissipation (Pd): 300mW
- Total Gate Charge (Qg@Vgs): 0.7nC@4.5V
- Drain Source Voltage (Vdss): 60V
- Input Capacitance (Ciss@Vds): 24.5pF@20V
- Continuous Drain Current (Id): 320mA
- Gate Threshold Voltage (Vgs(th)@Id): 2.5V@250uA
- Reverse Transfer Capacitance (Crss@Vds): -
- Drain Source On Resistance (RDS(on)@Vgs,Id): 1.6Ω@10V,500mA
- Package: SOT-23(TO-236)
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60V
- Current - Continuous Drain (Id) @ 25°C: 320mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.6Ohm @ 500mA, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 0.7nC @ 4.5V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 24.5pF @ 20V
- FET Feature: -
- Power Dissipation (Max): 350mW (Ta)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23-3 (TO-236)
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Base Part Number: 2N7002
- detail: N-Channel 60V 320mA (Ta) 350mW (Ta) Surface Mount SOT-23-3 (TO-236)
