FDY102PZ دیتاشیت

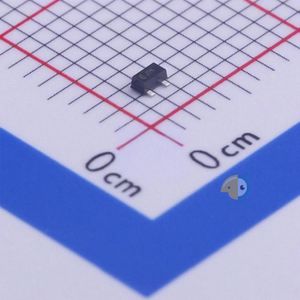

FDY102PZ

مشخصات دیتاشیت

نام دیتاشیت FDY102PZ
حجم فایل 70.016 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

مشاهده دیتاشیت FDY102PZ

دانلود دیتاشیت

سایر مستندات

FDY102PZ 9 pages

مشخصات فنی

  • RoHS: true
  • Type: P Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FDY102PZ
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 625mW
  • Total Gate Charge (Qg@Vgs): 3.1nC@4.5V
  • Drain Source Voltage (Vdss): 20V
  • Input Capacitance (Ciss@Vds): 135pF@10V
  • Continuous Drain Current (Id): 830mA
  • Gate Threshold Voltage (Vgs(th)@Id): 1V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 500mΩ@4.5V,830mA
  • Package: SC-89-3
  • Manufacturer: onsemi
  • Series: PowerTrench®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: P-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 20V
  • Current - Continuous Drain (Id) @ 25°C: 830mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
  • Rds On (Max) @ Id, Vgs: 500mOhm @ 830mA, 4.5V
  • Vgs(th) (Max) @ Id: 1V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 3.1nC @ 4.5V
  • Vgs (Max): ±8V
  • Input Capacitance (Ciss) (Max) @ Vds: 135pF @ 10V
  • FET Feature: -
  • Power Dissipation (Max): 625mW (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SC-89-3
  • Package / Case: SC-89, SOT-490
  • Base Part Number: FDY10
  • detail: P-Channel 20V 830mA (Ta) 625mW (Ta) Surface Mount SC-89-3
