ESD9X7.0ST5G دیتاشیت

ESD9X7.0ST5G

مشخصات دیتاشیت

نام دیتاشیت ESD9X7.0ST5G
حجم فایل 95.334 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت ESD9X7.0ST5G

دانلود دیتاشیت

سایر مستندات

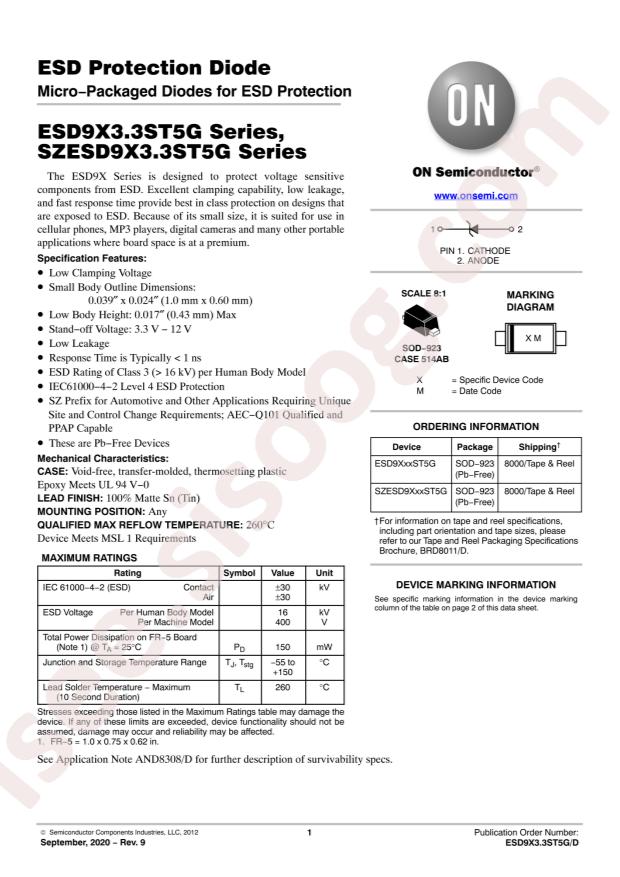

ESD9X3.3ST5G, SZESD9X3.3ST5G Series 6 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS
  • Datasheet: onsemi ESD9X7.0ST5G
  • Breakdown Voltage: 7.5V
  • Unidirectional Channels: 1
  • Maximum Clamping Voltage: 25V
  • Reverse Stand-Off Voltage (Vrwm): 7V@Max
  • Peak Pulse Current (Ipp)@10/1000us: 4A@8/20us
  • Peak Pulse Power Dissipation (Ppp)@10/1000us: 100W
  • Package: SOD-923-2
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Voltage - Reverse Standoff (Typ): 7V (Max)
  • Voltage - Breakdown (Min): 7.5V
  • Voltage - Clamping (Max) @ Ipp: 25V
  • Current - Peak Pulse (10/1000µs): 4A (8/20µs)
  • Power - Peak Pulse: 100W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: 65pF @ 1MHz
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: SOD-923
  • Supplier Device Package: SOD-923
  • Base Part Number: ESD9
  • detail: 25V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount SOD-923
