دیتاشیت ESD5Z12T1G
مشخصات دیتاشیت
| نام دیتاشیت | ESD5Z2.5T1G, SZESD5Z2.5T1G Series |
|---|---|
| حجم فایل | 67.185 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |
دانلود دیتاشیت ESD5Z2.5T1G, SZESD5Z2.5T1G Series |

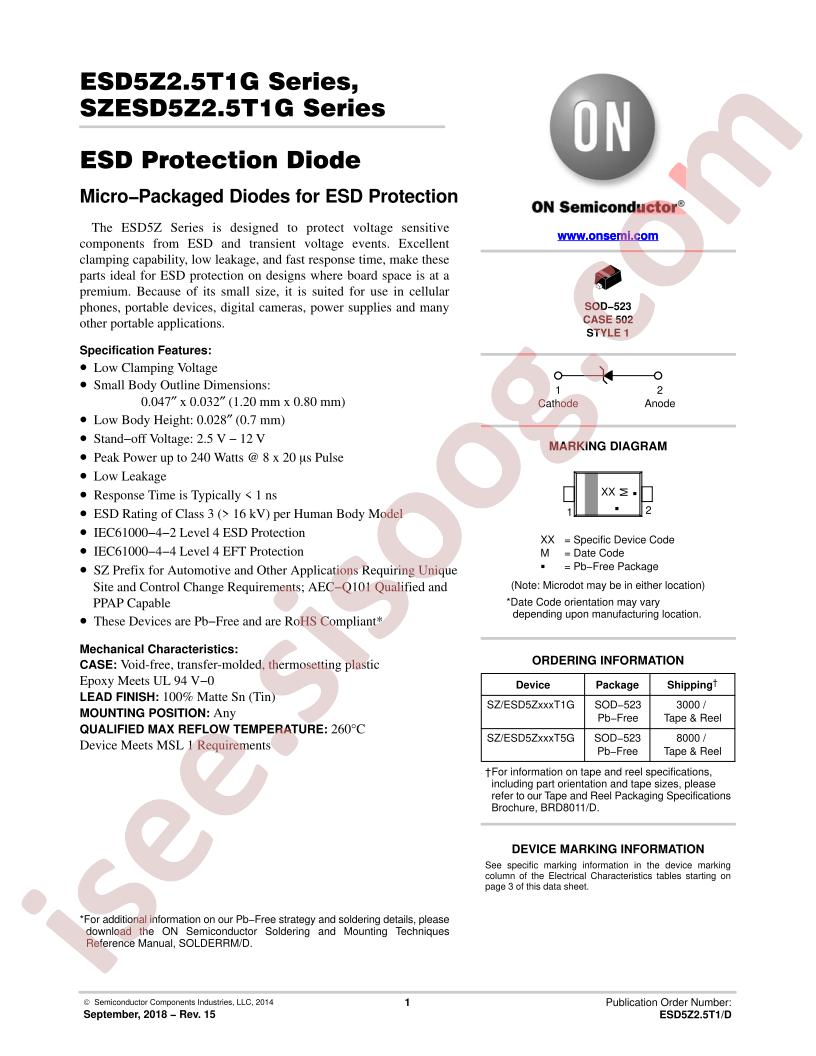

ESD5Z2.5T1G, SZESD5Z2.5T1G Series Datasheet |
|---|
مشخصات
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
- Polarity: Unidirectional
- Datasheet: onsemi ESD5Z12T1G
- Number of Lines: 1
- Clamping Voltage@Ipp: 25V
- Breakdown Voltage (VBR): 14.1V
- Peak Pulse Current(Ipp)@8/20us: 9.6A
- Reverse Stand-Off Voltage (Vrwm): 12V
- Package: SOD-523-2
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 12V (Max)
- Voltage - Breakdown (Min): 14.1V
- Voltage - Clamping (Max) @ Ipp: 25V
- Current - Peak Pulse (10/1000µs): 9.6A (8/20µs)
- Power - Peak Pulse: 240W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 55pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
- Base Part Number: ESD5
- detail: 25V Clamp 9.6A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
