ISD1790PY Datasheet
Datasheet specifications
| Datasheet's name | ISD1790PY |
|---|---|
| File size | 28.458 KB |
| File type | |
| Number of pages | 82 |
Download Datasheet ISD1790PY |
Download Datasheet |
|---|
Other documentations

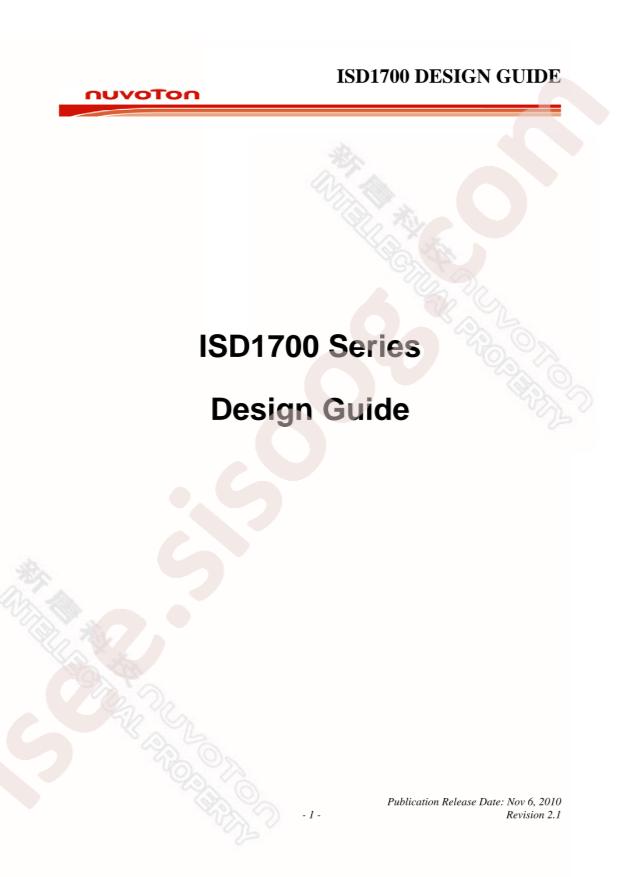

ISD1700 Series Design Guide 82 pages
Technical specifications
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Audio Interface ICs
- Datasheet: Nuvoton Tech ISD1790PY
- Package: DIP-28
- Manufacturer: Nuvoton Tech
- Series: ChipCorder®
- Part Status: Active
- Interface: Pushbutton, SPI
- Input Signal: Analog - Single Ended, Microphone
- Output Signal: Analog - Single Ended, PWM Speaker Output
- Sampling Frequency: 4 ~ 12kHz
- Duration: 60 ~ 180 Sec
- Filter Pass Band: -
- Messaging: Multiple
- Oscillator Type: Internal
- Features: Automatic Gain Control, Volume Control
- Operating Temperature: 0°C ~ 70°C (TA)
- Voltage - Supply: 2.4V ~ 5.5V
- Mounting Type: Through Hole
- Package / Case: 28-DIP (0.600", 15.24mm)
- Supplier Device Package: 28-DIP
- detail: Voice Record/Playback IC Multiple Message 60 ~ 180 Sec Pushbutton, SPI 28-DIP
