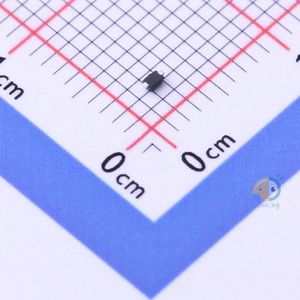

دیتاشیت ESD5Z2.5T1G

ESD5Z2.5T1G, SZESD5Z2.5T1G Series

مشخصات دیتاشیت

نام دیتاشیت ESD5Z2.5T1G, SZESD5Z2.5T1G Series
حجم فایل 67.185 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت ESD5Z2.5T1G, SZESD5Z2.5T1G Series

ESD5Z2.5T1G, SZESD5Z2.5T1G Series Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: onsemi ESD5Z2.5T1G
  • Package: SOD-523-2
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Unidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 2.5V (Max)
  • Voltage - Breakdown (Min): 4V
  • Voltage - Clamping (Max) @ Ipp: 10.9V
  • Current - Peak Pulse (10/1000µs): 11A (8/20µs)
  • Power - Peak Pulse: 120W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: 145pF @ 1MHz
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: SC-79, SOD-523
  • Supplier Device Package: SOD-523
  • Base Part Number: ESD5
  • detail: 10.9V Clamp 11A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523

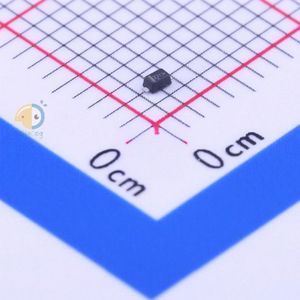

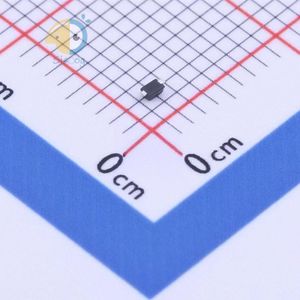

دیتاشیت محصولات مشابه
