ESD5Z7.0T1G دیتاشیت

ESD5Z7.0T1G

مشخصات دیتاشیت

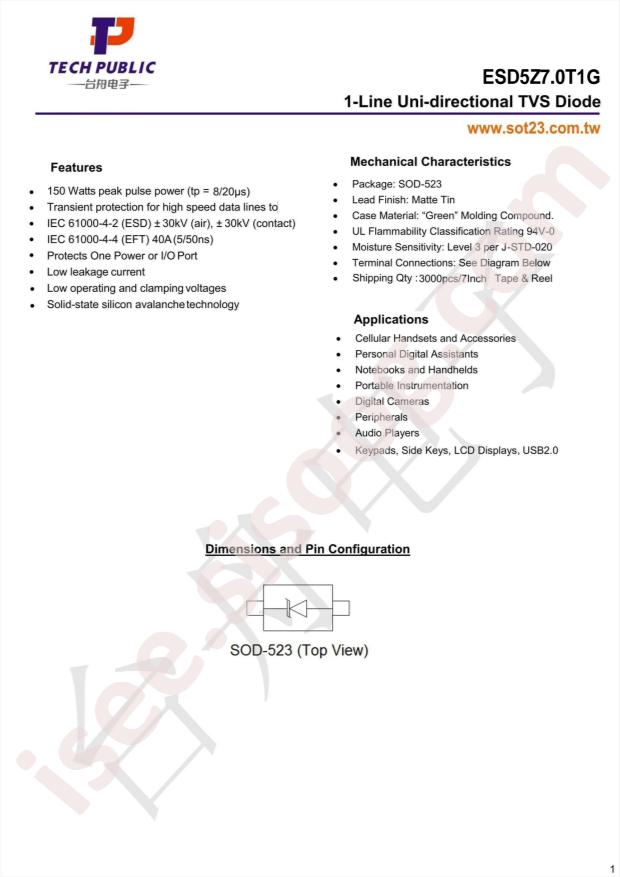

نام دیتاشیت ESD5Z7.0T1G
حجم فایل 52.749 کیلوبایت
نوع فایل pdf
تعداد صفحات 4

دانلود دیتاشیت ESD5Z7.0T1G

دانلود دیتاشیت

سایر مستندات

ESD5Z2.5T1G, SZESD5Z2.5T1G Series 5 pages

ESD5Z7.0T1G 4 pages

ESD5Z7.0T1G 5 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: onsemi ESD5Z7.0T1G
  • Number of Lines: 1
  • Clamping Voltage@Ipp: 22.7V
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Breakdown Voltage (VBR): 7.5V
  • Peak Pulse Power(Ppp)@8/20us: 200W
  • Junction Capacitance(Cj)@1MHz: 65pF@1MHz
  • Reverse Stand-Off Voltage (Vrwm): 7V
  • Package: SOD-523-2
  • Manufacturer: onsemi
  • Polarity: Unidirectional
  • Peak Pulse Current(Ipp)@8/20us: 15A
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Type: Zener
  • Unidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 7V (Max)
  • Voltage - Breakdown (Min): 7.5V
  • Voltage - Clamping (Max) @ Ipp: 22.7V
  • Current - Peak Pulse (10/1000µs): 8.8A (8/20µs)
  • Power - Peak Pulse: 200W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: 65pF @ 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: SC-79, SOD-523
  • Supplier Device Package: SOD-523
  • Base Part Number: ESD5
  • detail: 22.7V Clamp 8.8A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
