UMZ1NT1G دیتاشیت

UMZ1NT1G

مشخصات دیتاشیت

نام دیتاشیت UMZ1NT1G
حجم فایل 88.741 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

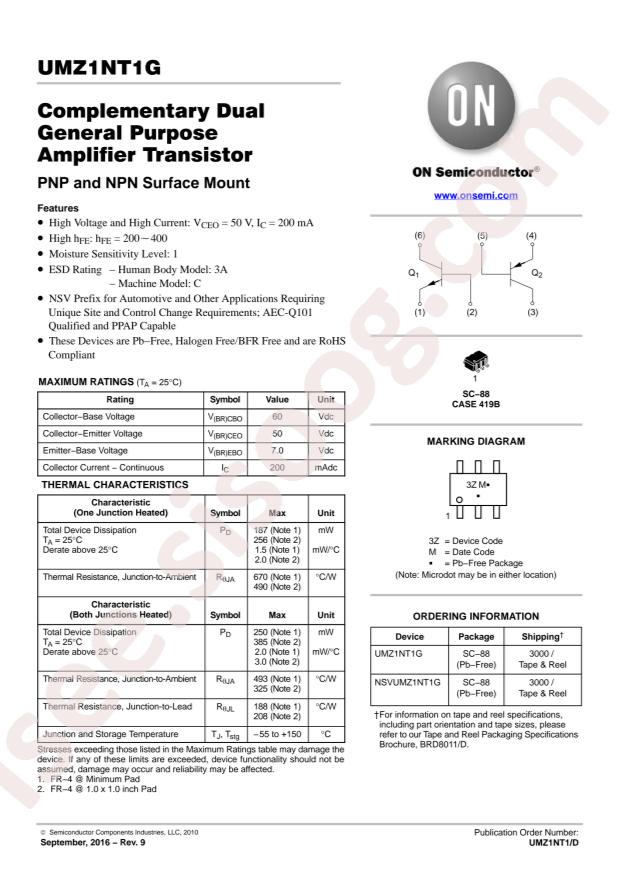

مشاهده دیتاشیت UMZ1NT1G

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: onsemi UMZ1NT1G
  • Transistor Type: 1PCSNPN&1PCSPNP
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Collector Current (Ic): 200mA
  • Power Dissipation (Pd): 250mW
  • Transition Frequency (fT): 114MHz
  • DC Current Gain (hFE@Ic,Vce): 200@2mA,6V
  • Collector Cut-Off Current (Icbo): 2uA
  • Collector-Emitter Breakdown Voltage (Vceo): 50V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 250mV@100mA,10mA
  • Package: SC-88
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Current - Collector (Ic) (Max): 200mA
  • Voltage - Collector Emitter Breakdown (Max): 50V
  • Vce Saturation (Max) @ Ib, Ic: 250mV @ 10mA, 100mA / 300mV @ 10mA, 100mA
  • Current - Collector Cutoff (Max): 2µA
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 2mA, 6V
  • Power - Max: 250mW
  • Frequency - Transition: 114MHz, 142MHz
  • Mounting Type: Surface Mount
  • Package / Case: 6-TSSOP, SC-88, SOT-363
  • Supplier Device Package: SC-88/SC70-6/SOT-363
  • Base Part Number: UMZ1
  • detail: Bipolar (BJT) Transistor Array NPN, PNP 50V 200mA 114MHz, 142MHz 250mW Surface Mount SC-88/SC70-6/SOT-363
