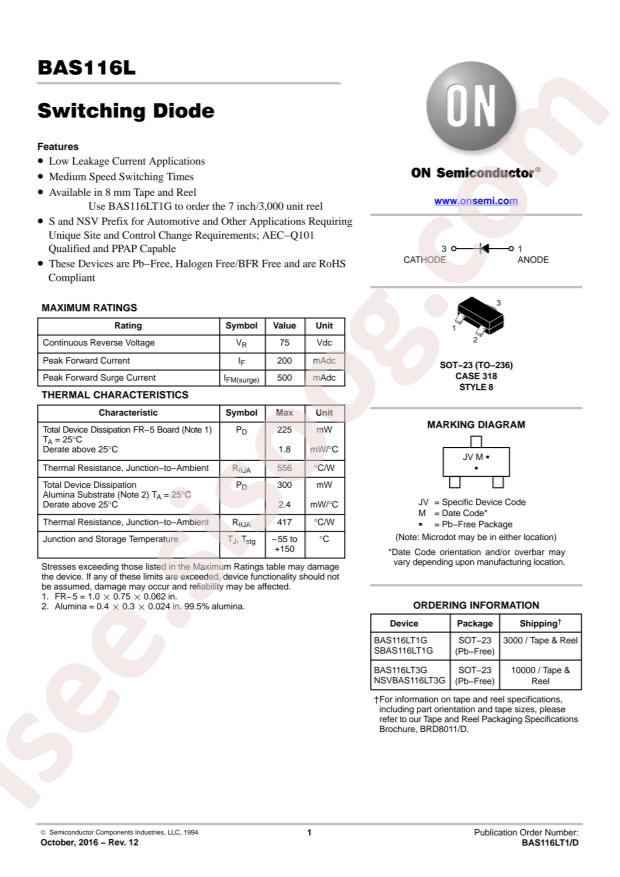

BAS116LT1G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | BAS116LT1G |
|---|---|
| حجم فایل | 78.063 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |
دانلود دیتاشیت BAS116LT1G |
دانلود دیتاشیت |
|---|
سایر مستندات
BAS116LT 4 pages
BAS116LT1G 3 pages
مشخصات فنی
- RoHS: true
- Category: Diodes/Switching Diode
- Datasheet: onsemi BAS116LT1G
- Power Dissipation: 300mW
- Diode Configuration: Single
- Reverse Voltage (Vr): 75V
- Operating Temperature: -55°C~+150°C@(Tj)
- Forward Voltage (Vf@If): 1.25V@150mA
- Reverse Leakage Current: 5nA@75V
- Reverse Recovery Time (trr): 3us
- Average Rectified Current (Io): 200mA
- Package: SOT-23(TO-236)
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 75V
- Current - Average Rectified (Io): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.25V @ 150mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Current - Reverse Leakage @ Vr: 5nA @ 75V
- Capacitance @ Vr, F: 2pF @ 0V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3 (TO-236)
- Operating Temperature - Junction: -55°C ~ 150°C
- Base Part Number: BAS116
- detail: Diode Standard 75V 200mA (DC) Surface Mount SOT-23-3 (TO-236)
