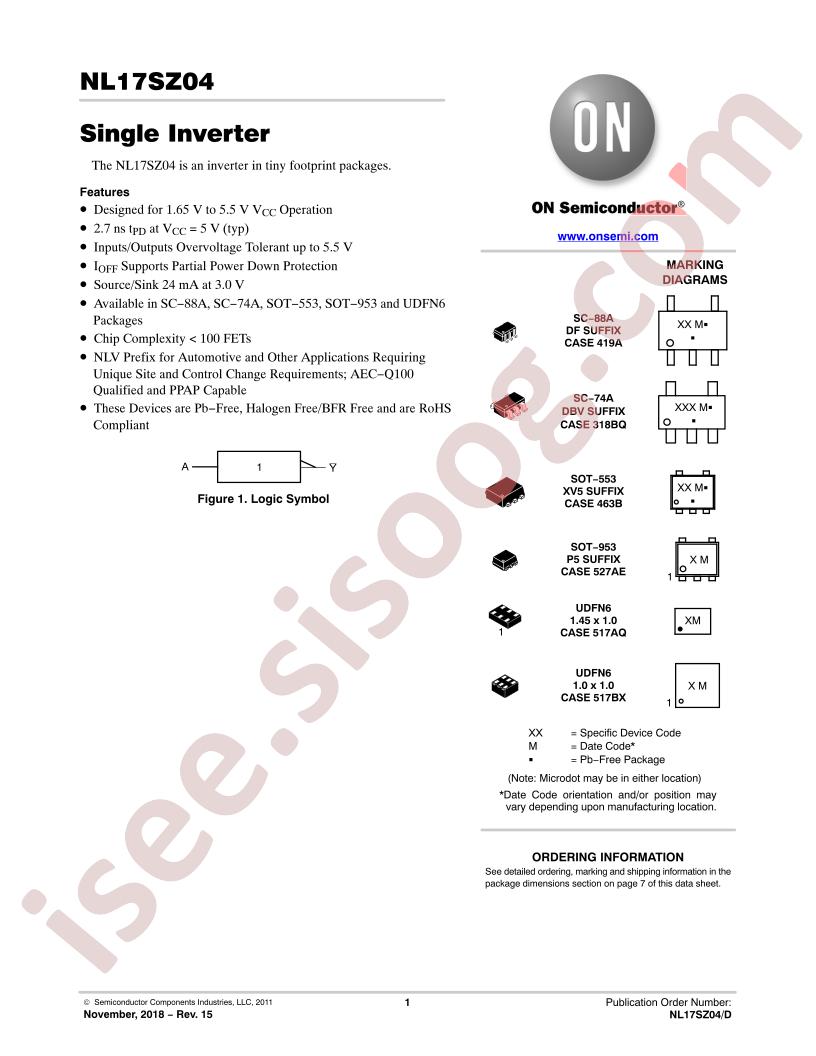

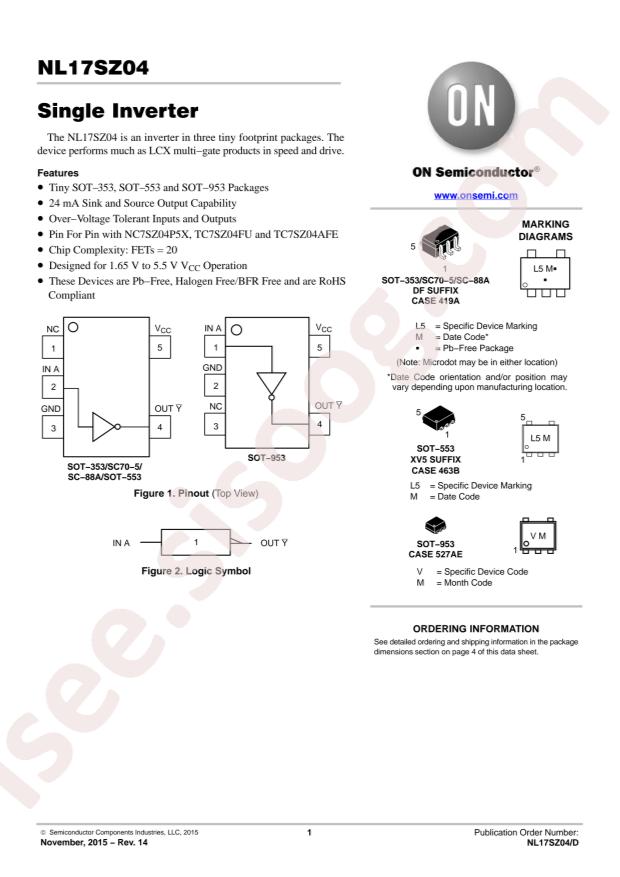

دیتاشیت NL17SZ04DFT2G
مشخصات دیتاشیت
| نام دیتاشیت |
NL17SZ04
|
| حجم فایل |
186.84
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
13
|
مشخصات
-
RoHS:
true
-
Series:
17SZ
-
Category:
Logic ICs/Inverters
-
Datasheet:
onsemi NL17SZ04DFT2G
-
Input Type:
-
-
Sink Current:
32mA
-
Source Current:
32mA
-
Number of channels:
1
-
Supply Current (Max):
1uA
-
Low level range (VIL):
-
-
Max Propagation Delay:
4.3ns@5V,50pF
-
Operating Temperature:
55°C~+125°C
-
High level range (VIH):
-
-
Supply Voltage(Single):
1.65V~5.5V
-
Package:
SOT-353
-
Manufacturer:
onsemi
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Logic Type:
Inverter
-
Number of Circuits:
1
-
Number of Inputs:
1
-
Features:
-
-
Voltage - Supply:
1.65V ~ 5.5V
-
Current - Quiescent (Max):
1µA
-
Current - Output High, Low:
32mA, 32mA
-
Logic Level - Low:
-
-
Logic Level - High:
-
-
Max Propagation Delay @ V, Max CL:
4.3ns @ 5V, 50pF
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SC-88A (SC-70-5/SOT-353)
-
Package / Case:
5-TSSOP, SC-70-5, SOT-353
-
Base Part Number:
NL17S
-
detail:
Inverter IC 1 Channel SC-88A (SC-70-5/SOT-353)
